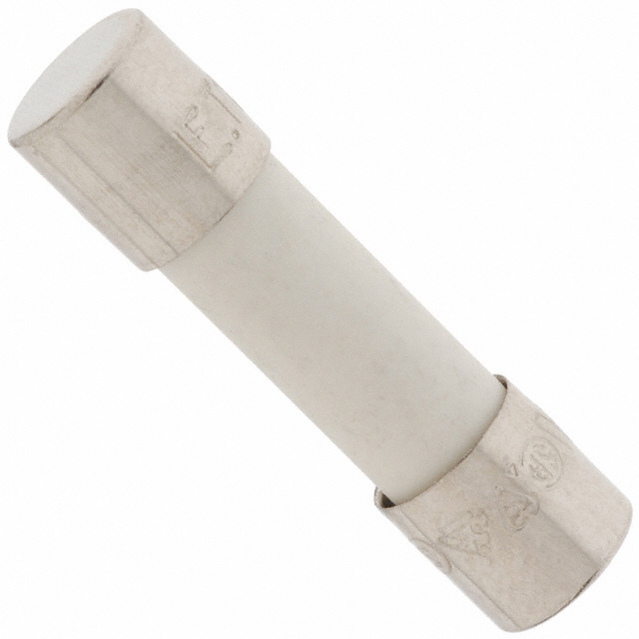

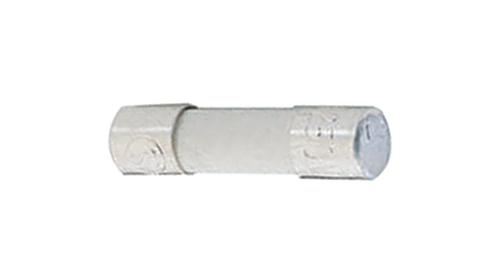

215 系列 延时 250 V 8 A 5 x 20 mm 陶瓷管 保险丝
反浪涌 T HBC - 陶瓷体,5x20
延时陶瓷体熔丝管特别适用于需要耐受浪涌的应用。 断开容量 1.5KA @ 250 V 交流
欧时:
Littelfuse 保险管, 熔断速度 T, 8A, 直径 5mm, 5 x 20mm, 250V ac
得捷:
FUSE CERAMIC 8A 250VAC 5X20MM
立创商城:
8A 250V 延时型
贸泽:
保险丝管 250V 8A Slo-Blo
艾睿:
A great alternative to a circuit breaker, this a miniature 0215008.MXP fuse from Littelfuse will protect your electronics. This device has a maximum power dissipation of 4 W. Its maximum power dissipation is 4 W. This device has a current rating of 8. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0215008.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm.
Allied Electronics:
Anti surge T HBC min fuse; 8A 5x20mm
富昌:
215 系列 5 x 20 mm 250 V 8 A 延时 陶瓷 盒状 保险丝
Chip1Stop:
Fuse Miniature Slow Blow Acting 8A 250V Holder Cartridge 5 X 20mm Ceramic Bulk BSI/CE/CSA/KC/PSE/SEMKO/UL/VDE
TME:
Fuse: fuse; time-lag; ceramic; 8A; 250VAC; 5x20mm; brass; 215
Verical:
Fuse Miniature Slow Blow Acting 8A 250V Holder Cartridge 5 X 20mm Ceramic Bulk CE/CSA/KC/PSE/SEMKO/UL/VDE
Newark:
Fuse, Cartridge, Slow Blow, 8 A, 250 V, 5mm x 20mm, 0.2" x 0.79", Slo-Blo 215 Series
儒卓力:
**8A 250V slow 5x20 ceramic **
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 8 A
耗散功率 4 W
电阻 0.0092 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 4 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.20 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0215008.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0215008.MXEP 力特 | 类似代替 | 0215008.MXP和0215008.MXEP的区别 |
0215008.MXESPP 力特 | 类似代替 | 0215008.MXP和0215008.MXESPP的区别 |
0215008.HXP 力特 | 类似代替 | 0215008.MXP和0215008.HXP的区别 |
