0313.100HXP概述

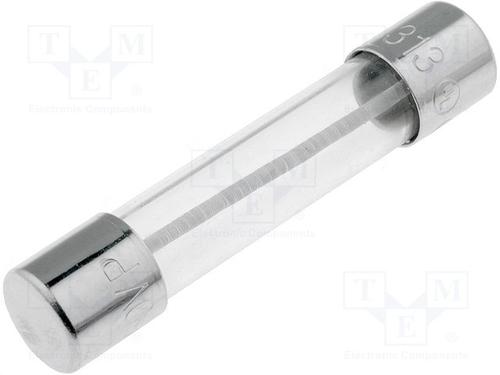

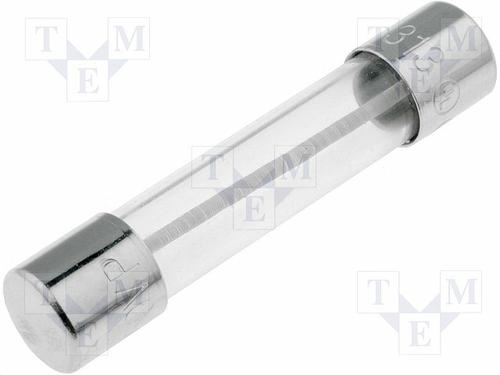

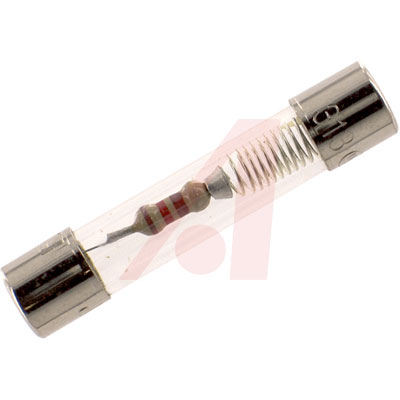

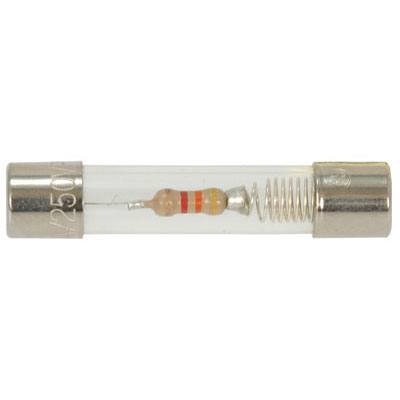

313 系列 慢断 250 V 0.1 A 31.75 x 6.35 mm 玻璃管 保险丝

For circuits with high inductive surge. 11⁄4 × 1⁄4". Maximum 250 V except
.
denotes 32 V. **Approvals:** Listed by Underwriters Laboratories and certified by CSA thru 7 amps; Recognized under the components program of Underwriters Laboratories from 10-30 amps. Axial leaded versions available by special order.

贸泽:
保险丝管 250V .1A Slo-Blo 3AG


艾睿:
Be protected by adding a miniature 0313.100HXP fuse developed by Littelfuse. This device has a current rating of 0.1. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0313.100HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm.


Allied Electronics:
Fuse; Cylinder; Slow Blow; 0.1A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Glass; 250VAC


Jameco:
Fuse 0.1A 250 Volt Slow Blow Acting 2-Pin MDL/3AG 1.25"x.25"


Chip1Stop:
Fuse Miniature Slow Blow Acting 0.1A 250V Holder Cartridge 6.3 X 32mm Glass Bulk


TME:
Fuse: fuse; time-lag; glass; 100mA; 250VAC; 6,3x32mm; Package: bulk


Verical:
Fuse Miniature Slow Blow Acting 0.1A 250V Holder Cartridge 6.35 X 31.75mm Glass Bulk CE/CSA/UL


Newark:
Fuse, Cartridge, Slow Blow, 100 mA, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", Slo-Blo 313 Series


0313.100HXP中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 0.1 A

电阻 11.28 Ω

电阻DC) 43 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 250 VAC

额定电压AC Max 250 V

封装参数

引脚数 2

封装 3AB, 3AG, 1/4" x 1-1/4"

外形尺寸

长度 31.75 mm

直径 6.35 mm

封装 3AB, 3AG, 1/4" x 1-1/4"

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0313.100HXP
型号: 0313.100HXP
描述:313 系列 慢断 250 V 0.1 A 31.75 x 6.35 mm 玻璃管 保险丝
替代型号0313.100HXP
型号/品牌 代替类型 替代型号对比

0313.100HXP

Littelfuse 力特

当前型号

当前型号

0313.125HXP

力特

类似代替

0313.100HXP和0313.125HXP的区别

0313.100MXP

力特

类似代替

0313.100HXP和0313.100MXP的区别

BK/MDL-1/16-R

伊顿巴斯曼

功能相似

0313.100HXP和BK/MDL-1/16-R的区别
