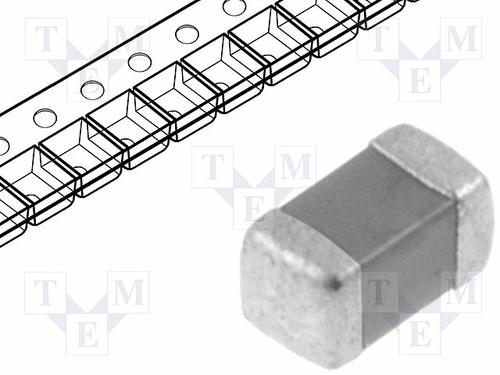

AVX 06036D475KAT2A 多层陶瓷电容器, 表面贴装, 4.7 µF, ± 10%, X5R, 6.3 V, 0603 [1608 公制]
The multilayer ceramic capacitors with EIA class II, X5R dielectric material are high capacitance ceramic chip capacitors used in general purpose applications. This multilayer ceramic capacitor is a monolithic block of ceramic containing two sets of offset, interleaved planar electrodes that extend to two opposite surfaces of the ceramic dielectric. These capacitors are well suited for decoupling and filtering applications.
- .
- Capacitance value ranges from 100pF to 100µF
- .
- EIA 0101, 0201, 0402, 0603, 0805, 1206, 1210, 1812 case sizes available
- .
- Rated voltage of 4V, 6.3V, 10V, 16V, 25V, 35V, 50V and 100VDC
- .
- ±10% and ±20% tolerance
- .
- Nickel and tin plated terminations
- .
- Operating temperature range from -55˚C to +85˚C
额定电压DC 6.30 V
工作电压 6.3 V
绝缘电阻 10 GΩ
电容 4.7 µF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
精度 ±10 %
额定电压 6.3 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.81 mm
高度 0.94 mm
封装公制 1608
封装 0603
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
制造应用 工业, Industrial, Consumer Electronics, Portable Devices, , Industrial, 通用, 便携式器材, 电源管理, Consumer Electronics, Power Management, 消费电子产品, Portable Devices, Medical
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
06036D475KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
GRM188R60J475KE19D 村田 | 完全替代 | 06036D475KAT2A和GRM188R60J475KE19D的区别 |
JMK107BJ475KA-T 太诱 | 完全替代 | 06036D475KAT2A和JMK107BJ475KA-T的区别 |
CC0603KRX5R5BB475 国巨 | 完全替代 | 06036D475KAT2A和CC0603KRX5R5BB475的区别 |
