表面安装熔断器 Surface Mount Fuses

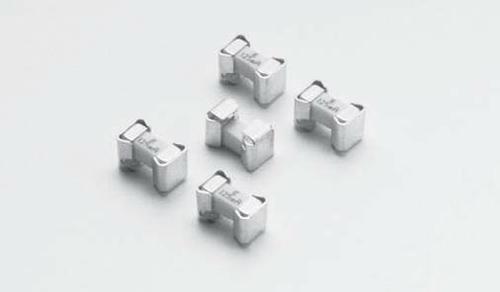

A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 1. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0157001.DRT fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 6.5 mm long, 3.9 mm tall and 3.7 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.
额定电压DC 32 V
额定电压AC 125 V
额定电流 1 A
电阻 0.2245 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 3.9 mm
封装 SMD-2
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0157001.DRT Littelfuse 力特 | 当前型号 | 当前型号 |
0452001.NRL 力特 | 类似代替 | 0157001.DRT和0452001.NRL的区别 |
