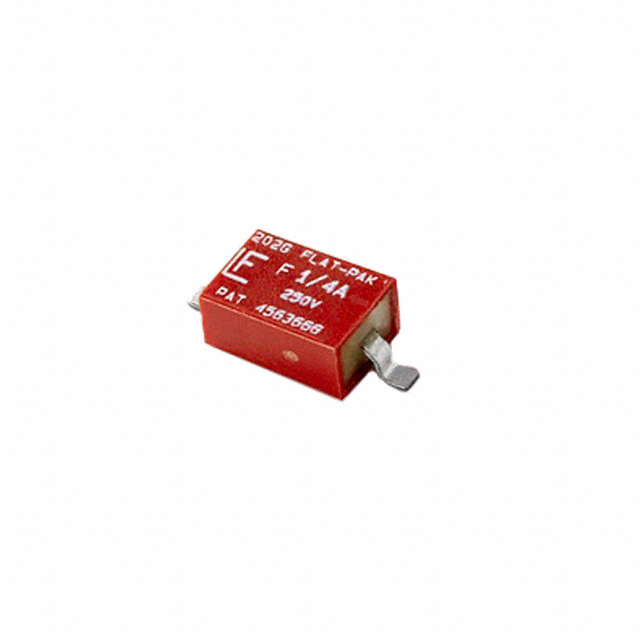

表面贴装保险丝FLAT- PAK®快熔保险丝\u003e 202系列 Surface Mount Fuses FLAT-PAK® Fast-Acting Fuse > 202 Series
Be protected by adding a subminiature fuse developed by . This device has a current rating of 0.62. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0202.062URG fuse has a gull wing termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its fuse is made from thermoplastic. This product is 9.45 mm long, 4.19 mm tall and 6.35 mm deep. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.062 A
电阻 7.9 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 9.45 mm
宽度 6.35 mm
高度 4.19 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ECCN代码 EAR99
