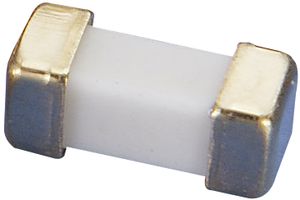

LITTELFUSE 0448.062MR 保险丝, SMD, 62MA, 快速反应, 整卷
The is a 0.062A/125VAC very Fast Acting Fuse with ceramic body and gold-plated caps termination. This 488-series square surface mount fuse features low temperature de-rating. Compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.
额定电压DC 32 V
额定电压AC 125 V
额定电流 62 mA
电阻 5.5 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD-2
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Automotive, Safety, Portable Devices, Industrial, Communications & Networking, Safety, Computers & Computer Peripherals, Portab, HVAC, Medical, Power Management, Computers & Computer Peripherals, Wireless
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0448.062MR Littelfuse 力特 | 当前型号 | 当前型号 |
0451.062MRL 力特 | 类似代替 | 0448.062MR和0451.062MRL的区别 |
0451.062MR 力特 | 类似代替 | 0448.062MR和0451.062MR的区别 |
0451.062MRSN 力特 | 类似代替 | 0448.062MR和0451.062MRSN的区别 |
