LITTELFUSE 0451.750MRL 保险丝, 快速熔断, SMD, 750mA

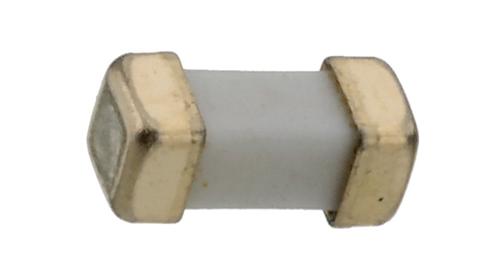

The is a 750mA very fast-acting SMF Fuse with ceramic body and gold plated caps terminations. The Nano²® SMF fuse is a very small, wire-in-air WIA square shape surface mount fuse that was designed for secondary side circuit over-current protection applications. This fuse is designed for PCB using surface mount technology.
- .
- Low temperature rerating
- .
- 0.245R Nominal cold resistance
- .
- -55 to 125°C Operating temperature range
触点电镀 Silver
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.75 A
电阻 0.1444 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 kV
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
直径 2.69 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Communications & Networking, Wireless, 工业, Industrial, 便携式器材, 通信与网络, Consumer Electronics, Portable Devices, 计算机和计算机周边, Computers & Computer Peripherals, 无线, 电源管理, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0451.750MRL Littelfuse 力特 | 当前型号 | 当前型号 |
0448.750MR 力特 | 类似代替 | 0451.750MRL和0448.750MR的区别 |
0451.750MR 力特 | 类似代替 | 0451.750MRL和0451.750MR的区别 |
0453.750MR 力特 | 类似代替 | 0451.750MRL和0453.750MR的区别 |
