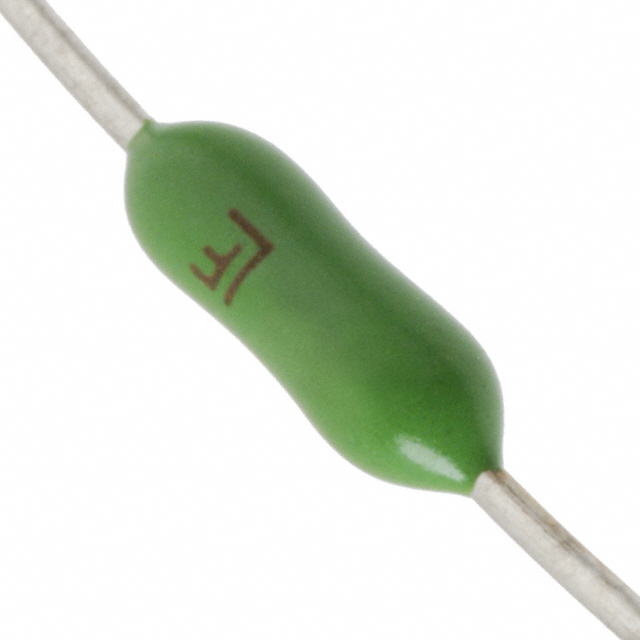

251/253系列， PICO® II ，速度非常快熔保险丝 251/253 Series, PICO® II, Very Fast-Acting Fuse
A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a current rating of 4. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0251004.NRT1L fuse has an axial termination style. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. The maximum AC voltage rating is 125 VAC. This product is 7.11 mm long with a diameter of 2.8Max mm. Its fuse is made from ceramic.
额定电压DC 125 V
额定电压AC 125 V
额定电流 4 A
易燃性等级 UL 94 V-0
电阻 0.0204 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 7.11 mm
直径 2.41 mm
封装 Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0251004.NRT1L Littelfuse 力特 | 当前型号 | 当前型号 |
0251004.MRT1L 力特 | 完全替代 | 0251004.NRT1L和0251004.MRT1L的区别 |
0251004.MXL 力特 | 完全替代 | 0251004.NRT1L和0251004.MXL的区别 |
0251004.MAT1L 力特 | 完全替代 | 0251004.NRT1L和0251004.MAT1L的区别 |
