0451.250MRL

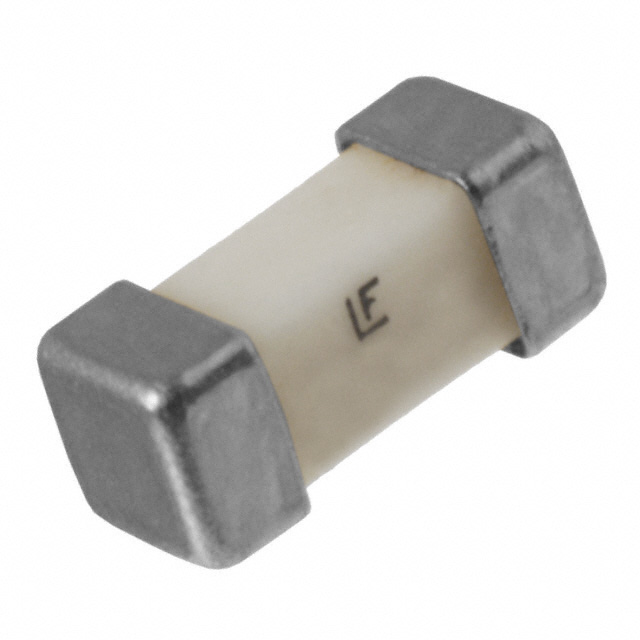

LITTELFUSE  0451.250MRL  保险丝, 0.25A, 125VAC/VDC, 超快速, SMD

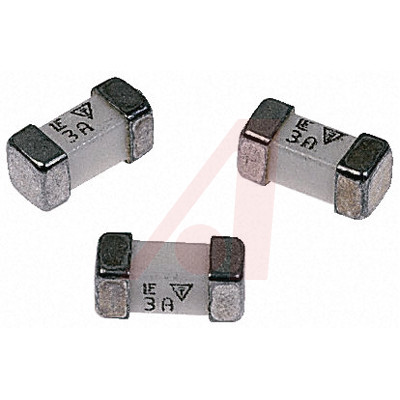

451 系列 NANO2 表面安装熔丝

Littelfuse 451 系列 NANO2 表面安装熔丝是非常小的架空导线 WIA 方形表面安装器件，特别适用于次级侧电路过电流保护应用。

超快反应

小尺寸

低温降额

### 认可

CSA, UL

### 认可

UL; CSA

### 表面安装技术

表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

欧时:
Littelfuse 451 系列 NANO2 表面安装熔丝Littelfuse 451 系列 NANO2 表面安装熔丝是非常小的架空导线 WIA 方形表面安装器件，特别适用于次级侧电路过电流保护应用。超快反应 小尺寸 低温降额### 认可CSA, UL### 认可UL; CSA### 表面安装技术表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

立创商城:
250mA 125V 快断

艾睿:
Be protected by adding a chip 0451.250MRL fuse developed by Littelfuse. This device has a current rating of 0.25. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0451.250MRL fuse has a solder pad termination style. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Its fuse is made from ceramic. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.

Allied Electronics:
Fuse; Board Mount; 250MA; 125VAC/VDC

Chip1Stop:
Fuse Chip Very Fast Acting 0.25A 125V SMD Solder Pad 2410 Ceramic T/R

TME:

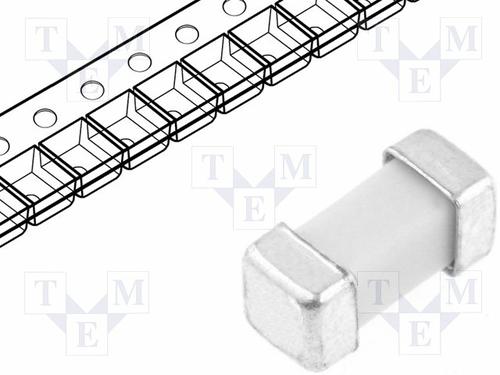

Fuse: fuse; ultra rapid; ceramic; 250mA; 125VAC; 125VDC; SMD

Verical:
Fuse Chip Very Fast Acting 0.25A 125V SMD Solder Pad 2410 Ceramic T/R CE/CSA/PSE/UL

Newark:
Fuse, Surface Mount, NANO 451 Series, 250 mA, 125 VAC, 32 VDC, Very Fast Acting, SMD

儒卓力:
**250mA 125V fast SMDNANO goldcap **

Win Source:
FUSE BOARD MNT 250MA 125VAC/VDC
