0459005.UR

LITTELFUSE  0459005.UR  保险丝, SMD, 5A, 快熔型, 整卷

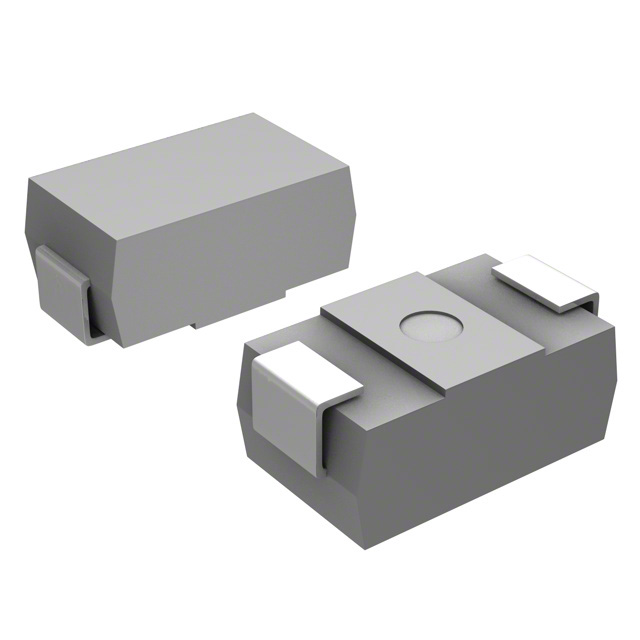

** 459 Series PICO SMD Fuses**

Littelfuse 459 series are small, thin-film, fast-acting type fuses designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices.

立创商城:
5A 125Vac 快断

艾睿:
A great alternative to a circuit breaker, this a chip 0459005.UR fuse from Littelfuse will protect your electronics. This device has a current rating of 5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0459005.UR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 7.24 mm long, 3.05 mm tall and 4.32 mm deep. Its fuse is made from thermoplastic. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.

Allied Electronics:
Fuse; PICO; Very Fast-Acting; Thermoplastic; Chip; 5A; 125V; Surface Mount

Chip1Stop:
Fuse Chip Very Fast Acting 5A 125V SMD Solder Pad 7.24 X 4.32 X 3.05mm Thermoplastic T/R

TME:
Fuse: fuse; ultra rapid; ceramic; 5A; 125VAC; 7,24x4,32x3,05mm

Verical:
Fuse Chip Very Fast Acting 5A 125V SMD Solder Pad 7.24 X 4.32 X 3.05mm Thermoplastic T/R CSA

Newark:
# LITTELFUSE  0459005.UR  Fuse, Surface Mount, PICO Series, 5 A, 125 VAC, 125 VDC, Very Fast Acting, SMD

儒卓力:
**5A 125V very fast SMD SMF PICO **

Win Source:
FUSE BRD MNT 5A 125VAC/VDC 2SMD
