0313.600HXP

三百十五分之三百一十三系列无铅3AG ， SLO- Blo®保险丝 313/315 Series Lead-Free 3AG, Slo-Blo® Fuse

For circuits with high inductive surge. 11⁄4 × 1⁄4". Maximum 250 V except

.

denotes 32 V. **Approvals:** Listed by Underwriters Laboratories and certified by CSA thru 7 amps; Recognized under the components program of Underwriters Laboratories from 10-30 amps. Axial leaded versions available by special order.

艾睿:

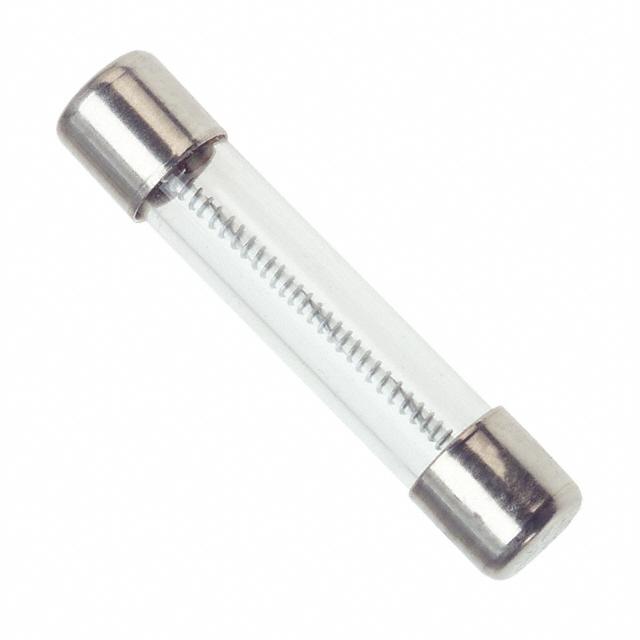

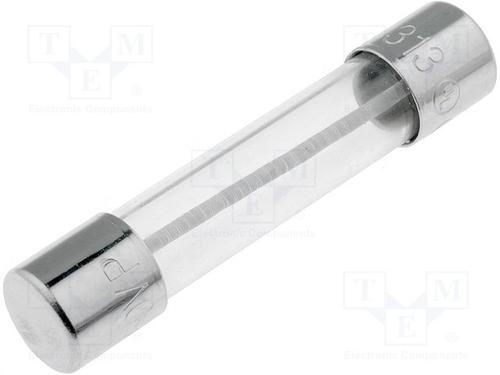

A great alternative to a circuit breaker, this a miniature 0313.600HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 0.6. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0313.600HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Cylinder; Slow Blow; 0.6A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Glass; 250VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 0.6A 250V Holder Cartridge 6.3 X 32mm Glass Bulk CE/CSA/UL

TME:
Fuse: fuse; time-lag; glass; 600mA; 250VAC; 6,3x32mm

Verical:
Fuse Miniature Slow Blow Acting 0.6A 250V Holder Cartridge 6.35 X 31.75mm Glass Bulk CE/CSA/UL

Newark:
# LITTELFUSE  0313.600HXP  Fuse, Cartridge, Slo-Blo 313 Series, 600 mA, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 35 A
