0314008.HXP

324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse

.

*Blow Time:** 100% four hour minimum; 135% one hour maximum; 200% 15 second maximum 1⁄8-12 A; 30 second maximum 15-30 A. 11⁄4 × 1⁄4". UL listed thru 15 amps. Certified by CSA thru 15 amps. UL recognized, 20-30 A.

贸泽:

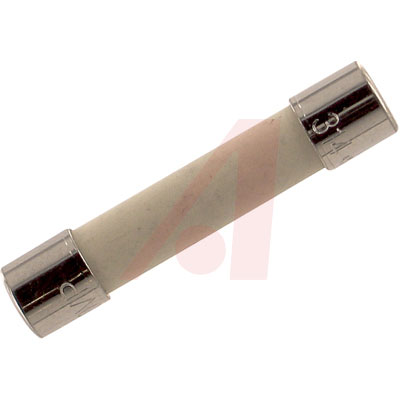

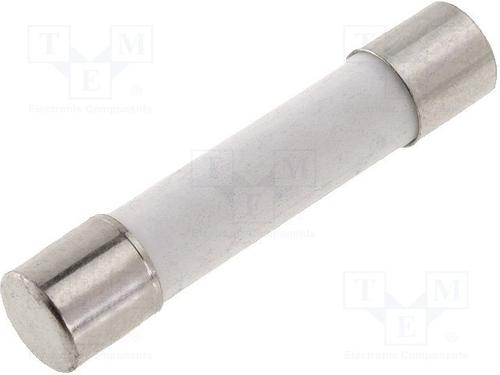

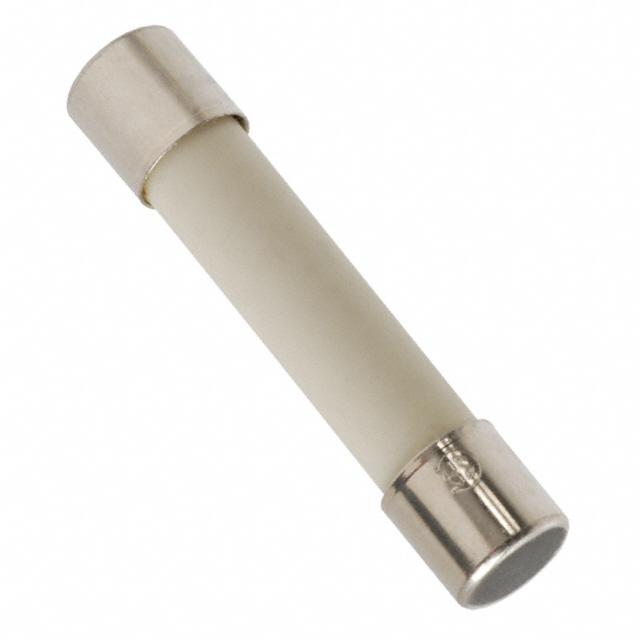

Cartridge Fuses 250V 8A Fast Acting

艾睿:
Be protected by adding a miniature 0314008.HXP fuse developed by Littelfuse. This device has a current rating of 8. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0314008.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC. This product is 31.75 mm long with a diameter of 6.35 mm.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 8A; 3AB; Supplemental; 0.25x1.25 in.; Ceramic; 250VAC

Jameco:
Fuse 8A 250 Volt Fast Acting 3AG 1.25"x.25" 2-Pin

Chip1Stop:
Fuse Miniature Fast Acting 8A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk

TME:
Fuse: fuse; quick blow; ceramic; 8A; 250VAC; 6,3x32mm; brass

Verical:
Fuse Miniature Fast Acting 8A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

Newark:
Fuse, Cartridge, Fast Acting, 8 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 314 Series
