0216.500HXP

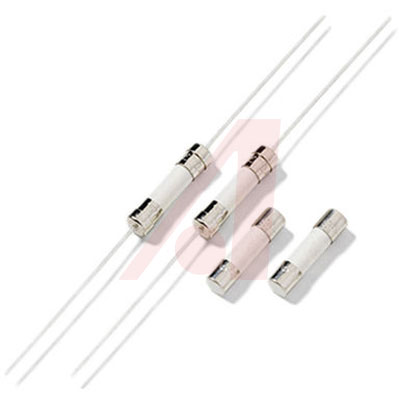

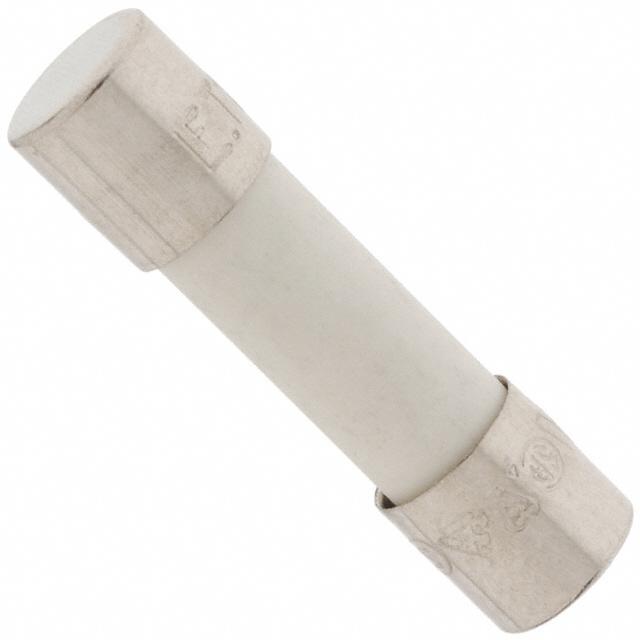

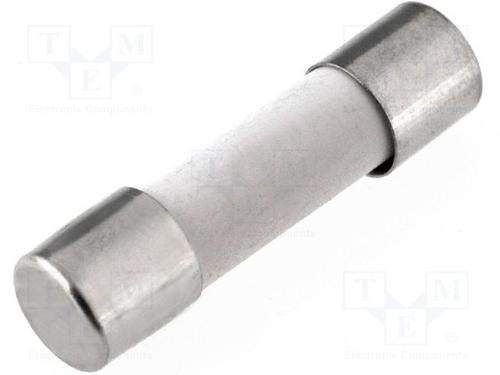

216系列， 5 ×20毫米，快熔保险丝 216 Series, 5 x 20 mm, Fast-Acting Fuse

**Littefuse 216 Series 5x20mm**

The 216 series of fast acting fuses from are ideal for applications where high current loads are expected. This series of fast acting fuse feature a ceramic body construction which permits higher interrupting ratings and voltage ratings.

得捷:
FUSE CERAMIC 500MA 250VAC 5X20MM

艾睿:
A great alternative to a circuit breaker, this a miniature 0216.500HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 0.5. This device has a maximum power dissipation of 2.5Typ W. Its maximum power dissipation is 2.5Typ W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0216.500HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm. Its fuse is made from ceramic.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 0.5A; Dims 5x20mm; Ceramic; Cartridge; 250VAC; 0.866Ohms

TME:
Fuse: fuse; quick blow; ceramic; 0.5A; 250VAC; 5x20mm; Package: bulk

Verical:
Fuse Miniature Fast Acting 0.5A 250V Holder Cartridge 5 X 20mm Ceramic Bulk

Newark:
# LITTELFUSE  0216.500HXP  Fuse, Cartridge, 216 Series, 500 mA, 250 V, 5mm x 20mm, 0.2" x 0.79", 1.5 kA
