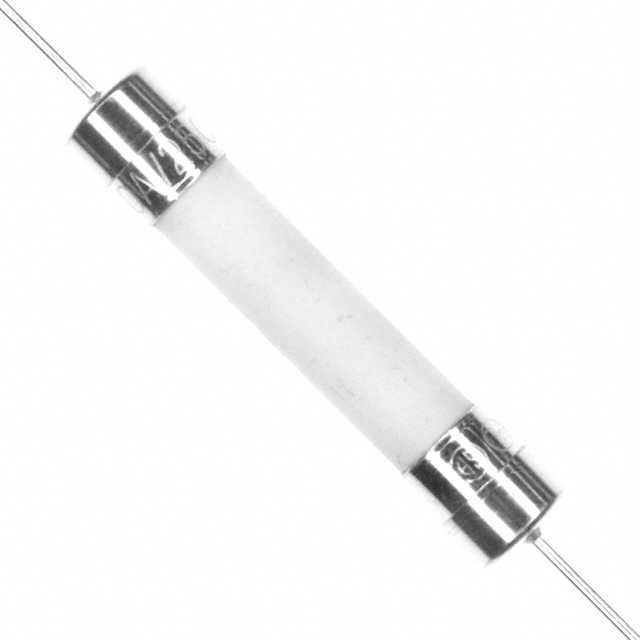

三百二十六分之三百二十五系列无铅3AB ， SLO- Blo®保险丝 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse
Be protected by adding a miniature fuse developed by . This device has a current rating of 12. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0325012.HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC. This product is 32.72 mm long with a diameter of 6.99 mm.
额定电压DC 60 V
额定电压AC 250 V
额定电流 12 A
电阻 0.0067 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.72 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0325012.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0325012.MXP 力特 | 功能相似 | 0325012.HXP和0325012.MXP的区别 |
325012P 力特 | 功能相似 | 0325012.HXP和325012P的区别 |
32501.2P 力特 | 功能相似 | 0325012.HXP和32501.2P的区别 |
