0326007.HXP

三百二十六分之三百二十五系列无铅3AB ， SLO- Blo®保险丝 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse

Ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. 250 Volts. 1⁄4" × 11⁄4".

.

*Approvals:** Listed by UL and Certified by CSA from 1⁄4 through 30 Amps. Recognized under the Components Program of UL from 12 through 30 Amps. **Electrical Characteristics. % of Ampere Rating/Opening Time:** 110% — 4 hrs. min., 135% — 1 hr. max., 200% — 5 Sec min.

贸泽:
保险丝管 250V 7A Slo-Blo

艾睿:

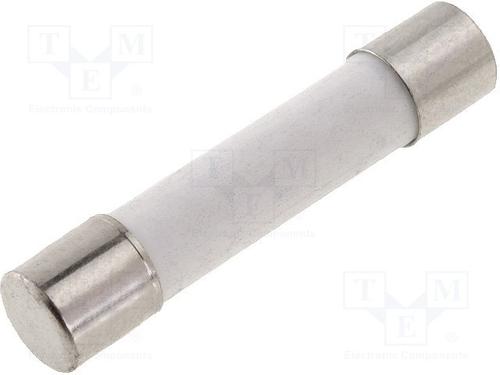

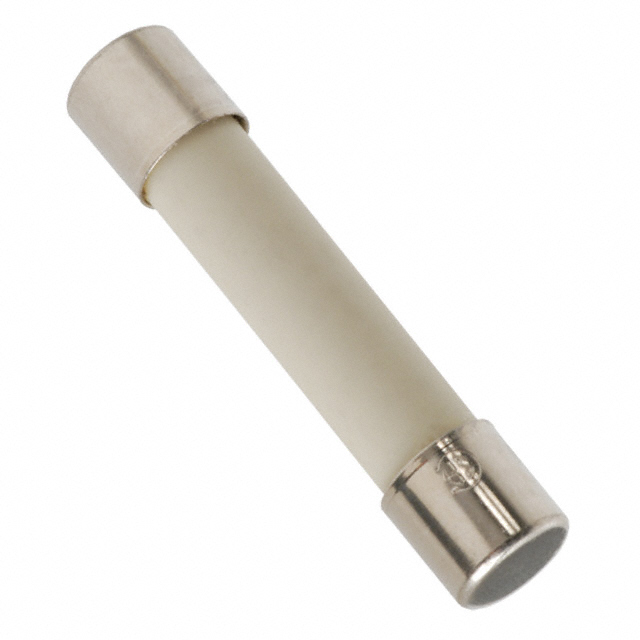

A great alternative to a circuit breaker, this a miniature 0326007.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 7. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0326007.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 31.75 mm long with a diameter of 6.35 mm. Its fuse is made from ceramic.

Allied Electronics:
Fuse; Cylinder; Slow Blow; 7A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Ceramic; 250VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 7A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

TME:
Fuse: fuse; time-lag; ceramic; 7A; 250VAC; 6,3x32mm; Package: bulk

Verical:
Fuse Miniature Slow Blow Acting 7A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

Newark:
# LITTELFUSE  0326007.HXP  Fuse, Cartridge, Slo-Blo 326 Series, 7 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 400 A
