0466005.NR

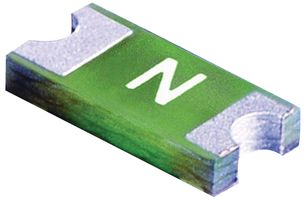

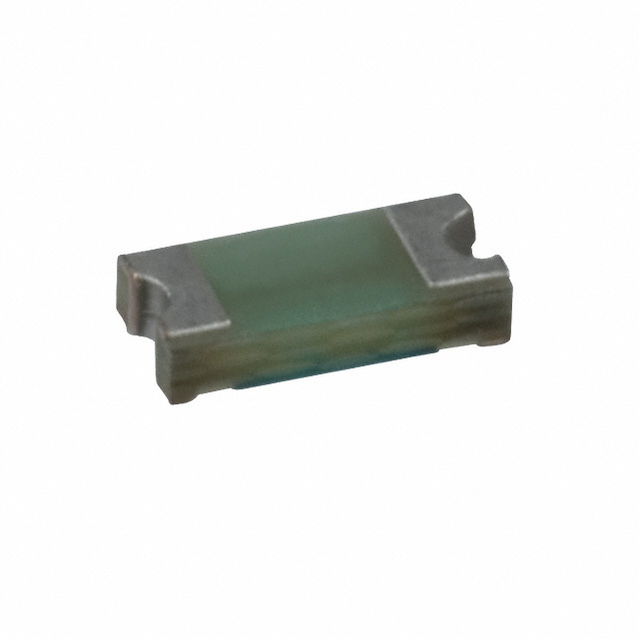

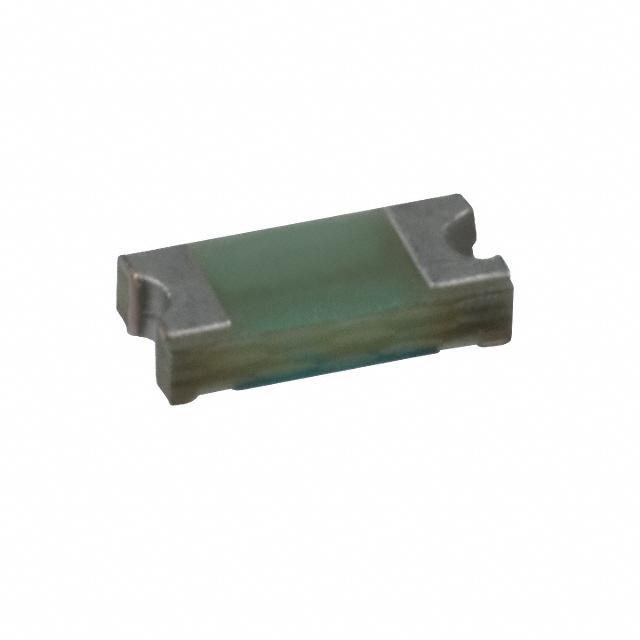

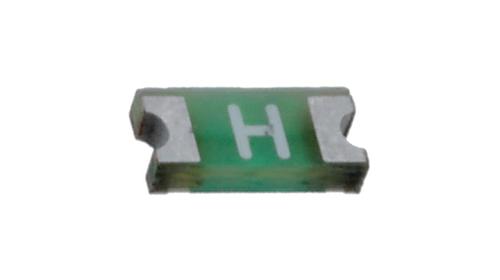

LITTELFUSE  0466005.NR  保险丝, 1206, 甚快速熔断, 5A

466 系列 SMD 熔丝

Littelfuse 466 系列快熔式表面安装熔丝是小型（1206 规格）薄膜设备，设计用于空间受限的应用中的次级电路保护，例如的手持式便携式电子设备。

### 表面安装技术

表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

欧时:
Littelfuse 5A电流 F熔度 不可复位表面固定熔断器 0466005.NR, 3.175 x 1.524 x 0.584mm, 32V

得捷:
FUSE BOARD MNT 5A 32VAC/VDC 1206

立创商城:
5A 32V 特快熔断

艾睿:
Be protected by adding a chip 0466005.NR fuse developed by Littelfuse. This device has a current rating of 5. This fuse has an operating temperature range of -50 °C to 90 °C. It has 2 terminals. The 0466005.NR fuse has a solder pad termination style. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep. The maximum AC voltage rating is 32 VAC and the maximum DC voltage rating is 32 VDC.

Allied Electronics:
5A F Non-Resettable Surface Mount Fuse, 32 V

Chip1Stop:
Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 1206 T/R CSA

Verical:
Fuse Chip Very Fast Acting 5A 32V SMD Solder Pad 1206 T/R CSA

Newark:
# LITTELFUSE  0466005.NR  Fuse, Surface Mount, 466 Series, 5 A, 32 VAC, 32 VDC, Very Fast Acting, 1206

儒卓力:
**5A 32V very fast 1206 SMD SLIM **

Win Source:
FUSE BOARD MNT 5A 32VAC/VDC 1206
