二百三十分之二百二十九系列无铅2AG ， SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse

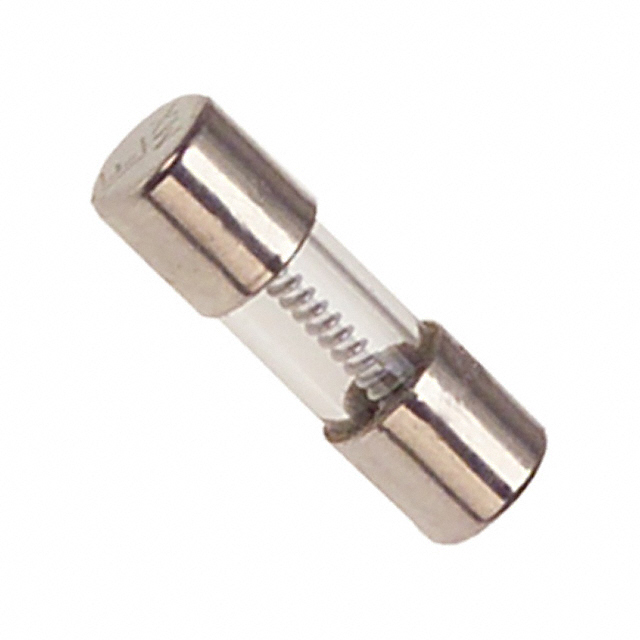

A great alternative to a circuit breaker, this a subminiature fuse from will protect your electronics. This device has a current rating of 1. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0229001.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. This product is 14.48 mm long with a diameter of 4.5 mm. Its fuse is made from glass.
额定电压DC 125 V
额定电压AC 250 V
额定电流 1 A
电阻 0.0212 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 2AG, 5mm x 15mm
长度 14.48 mm
直径 4.50 mm
封装 2AG, 5mm x 15mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0229001.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0229001.HXP 力特 | 类似代替 | 0229001.MXP和0229001.HXP的区别 |
