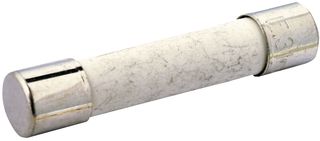

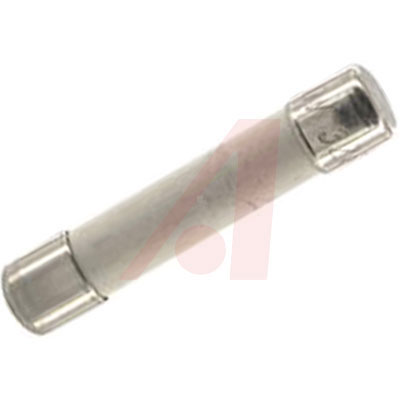

326 系列 慢断 250 V 1 A 31.75 x 6.35 mm 陶瓷管 保险丝
Ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. 250 Volts. 1⁄4" × 11⁄4". 贸泽:
保险丝管 250V 1A Slo-Blo
艾睿:
Be protected by adding a miniature 0326001.HXP fuse developed by Littelfuse. This device has a current rating of 1. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0326001.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic. This product is 31.75 mm long with a diameter of 6.35 mm.
Allied Electronics:
Fuse; Cylinder; Slow Blow; 1A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Ceramic; 250VAC
Jameco:
Fuse 1A 250 Volt Ceramic Slow Blow Acting 3AB
Chip1Stop:
Fuse Miniature Slow Blow Acting 1A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus
TME:
Fuse: fuse; time-lag; ceramic; 1A; 250VAC; 6,3x32mm; Package: bulk
Verical:
Fuse Miniature Slow Blow Acting 1A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus
Newark:
Fuse, Cartridge, Slow Blow, 1 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 326 Series
儒卓力:
**1A 250V slow 6.3x32 ceramic **
额定电压DC 125 V
额定电压AC 250 V
额定电流 1 A
电阻 0.389 Ω
电阻DC) 0.386 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0326001.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0326001.MXP 力特 | 完全替代 | 0326001.HXP和0326001.MXP的区别 |
0326001.VXP 力特 | 完全替代 | 0326001.HXP和0326001.VXP的区别 |
0325001.HXP 力特 | 类似代替 | 0326001.HXP和0325001.HXP的区别 |
