0230002.HXP

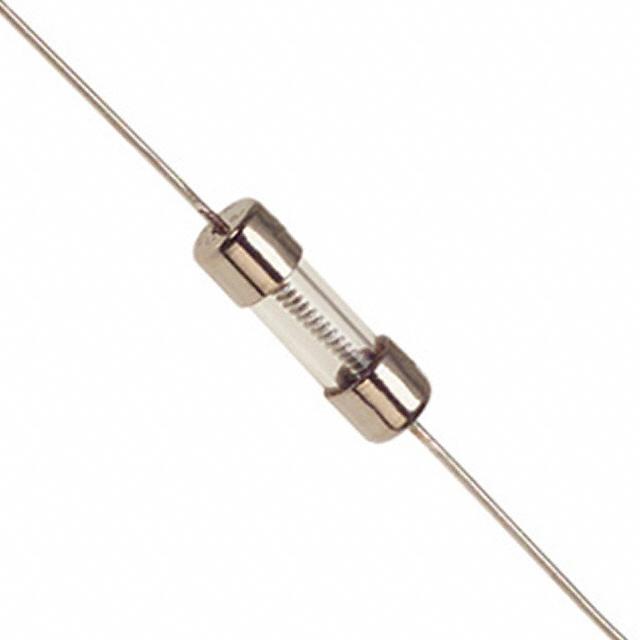

二百三十分之二百二十九系列无铅2AG ， SLO- Blo®保险丝和指示SLO- Blo®保险丝 229/230 Series Lead-Free 2AG, Slo-Blo® Fuse and Indicating Slo-Blo® Fuse

The 2AG fuse provides the same performance characteristics as the universal standard 3AG design in less than one-third the space. These subminiature fuses offer top quality, reliability and space-saving protection for your new designs. Available with pigtail leads for direct soldering or for use with #111501 mating PCB fuse clips. The 2AG Series is UL and CSA Approved.

艾睿:
Be protected by adding a subminiature 0230002.HXP fuse developed by Littelfuse. This device has a current rating of 2. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0230002.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. This product is 14.48 mm long with a diameter of 4.7 mm. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Submin/Telecom; Slow Blow; 2A; Sz 2AG; Supplemental; Dims 0.184x0.57"; Glass

Verical:
Fuse Subminiature 2A 250V Cartridge 5 X 20mm Glass Bulk CSA/UL

Newark:
# LITTELFUSE  0230002.HXP  Fuse, Cartridge, Slo-Blo 230 Series, 2 A, 250 V, 5mm x 15mm, 100 A

Online Components:
Fuse Subminiature 2A 250V Cartridge 5 X 20mm Glass Bulk
