0239.200HXP概述

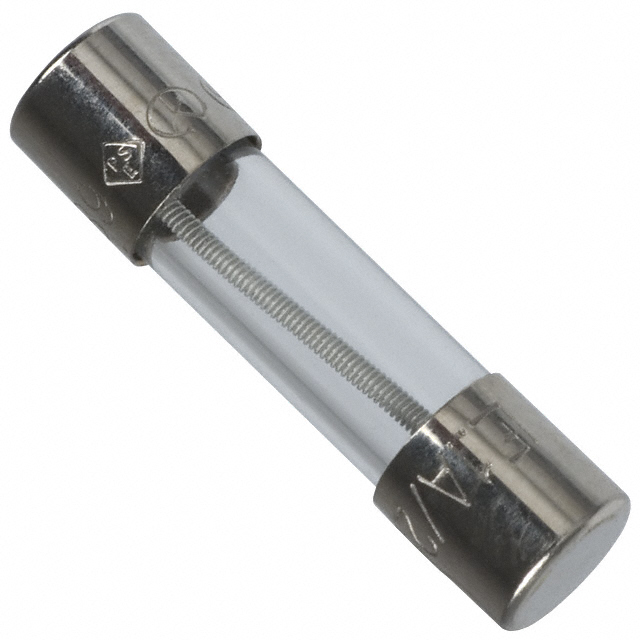

239系列, 5 ×20毫米S10 - Blo®保险丝 239 Series, 5 x 20 mm, Slo-Blo® Fuse

Be protected by adding a miniature fuse developed by . This device has a current rating of 0.2. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0239.200HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 20 mm long with a diameter of 5.2 mm.

0239.200HXP中文资料参数规格
技术参数

额定电压DC 250 V

额定电压AC 250 V

额定电流 0.2 A

电阻 3.8725 Ω

工作温度Max 125 ℃

工作温度Min -55 ℃

额定电压 250 V

额定电压AC Max 250 V

封装参数

引脚数 2

封装 5mm x 20mm

外形尺寸

长度 20 mm

直径 5.20 mm

封装 5mm x 20mm

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0239.200HXP
型号: 0239.200HXP
描述:239系列, 5 ×20毫米S10 - Blo®保险丝 239 Series, 5 x 20 mm, Slo-Blo® Fuse
替代型号0239.200HXP
型号/品牌 代替类型 替代型号对比

0239.200HXP

Littelfuse 力特

当前型号

当前型号

0239.200MXP

力特

完全替代

0239.200HXP和0239.200MXP的区别

239.200

力特

完全替代

0239.200HXP和239.200的区别
