0239007.MXP

239 系列 延时 125 V 7 A 5 x 20 mm 玻璃管 保险丝

239 Series time lag glass fuses are designed to UL/CSA/ANCE 248 Standard.

.

*Agency Approvals:** UL Listed; CSA Certified; Approved by METI and K Mark. **Blow Time:** 110%, 4 hour minimum; 135%, 1 hour maximum; 200%, 5 seconds minimum; 2 minutes maximum.

艾睿:

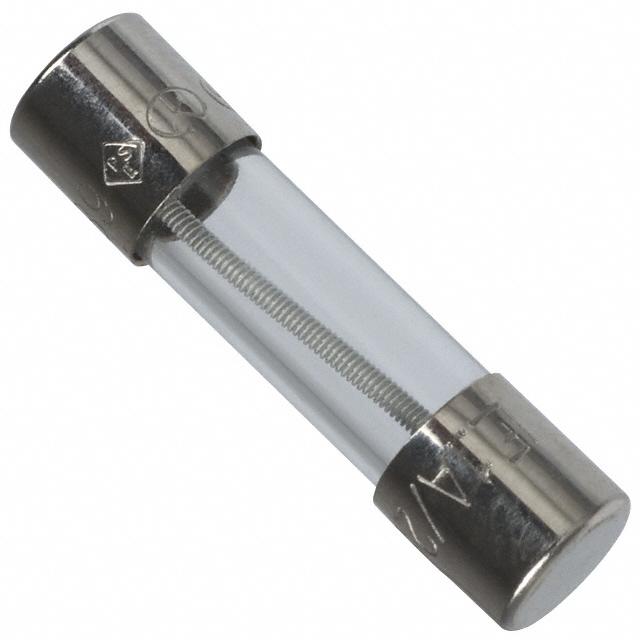

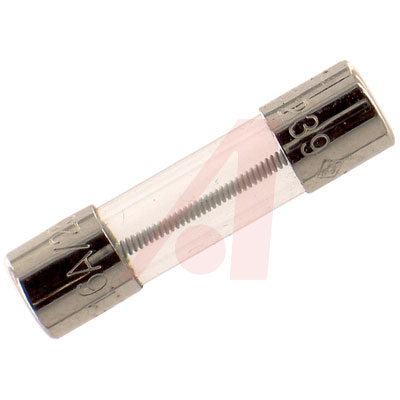

Be protected by adding a miniature 0239007.MXP fuse developed by Littelfuse. This device has a current rating of 7. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0239007.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC. Its fuse is made from glass. This product is 20 mm long with a diameter of 5.2 mm.

Allied Electronics:
Fuse; Cylinder; Slow Blow/Time Lag; 7A; Dims 5x20mm; Glass; Cartridge; 125VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 7A 125V Holder Cartridge 5 X 20mm Glass Bulk

Verical:
Fuse Miniature Slow Blow Acting 7A 125V Holder Cartridge 5 X 20mm Glass Bulk CE/CSA/KC/PSE/UL

Newark:
Fuse, Cartridge, Slow Blow, 7 A, 125 V, 5mm x 20mm, 0.2" x 0.79", Slo-Blo 239 Series
