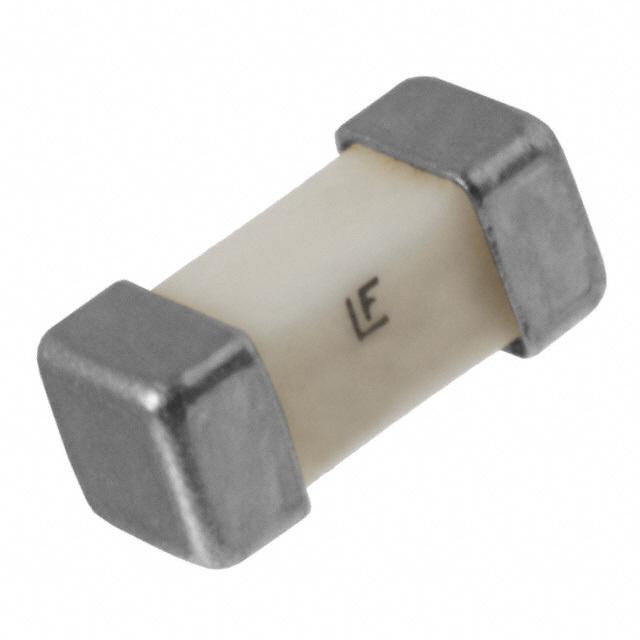

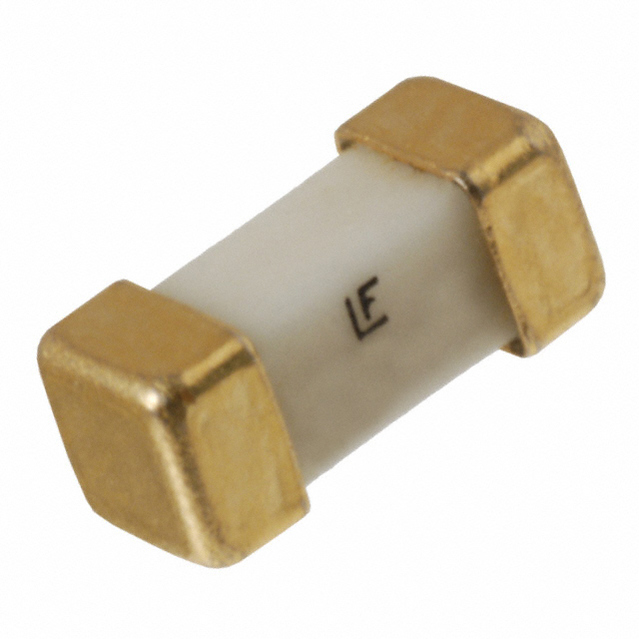

LITTELFUSE 0454003.MR 保险丝, SMD, 3A, 延时型, 整卷
A great alternative to a circuit breaker, this a chip fuse from will protect your electronics. This device has a current rating of 3. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0454003.MR fuse has a solder pad termination style. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its fuse is made from ceramic. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.
额定电压DC 125 V
额定电压AC 125 V
额定电流 3 A
电阻 0.034 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0454003.MR Littelfuse 力特 | 当前型号 | 当前型号 |
0454003.NR 力特 | 类似代替 | 0454003.MR和0454003.NR的区别 |
