0218010.HXP

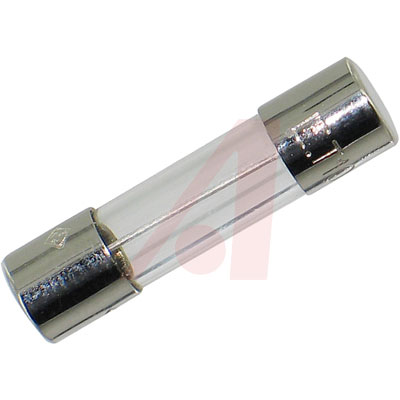

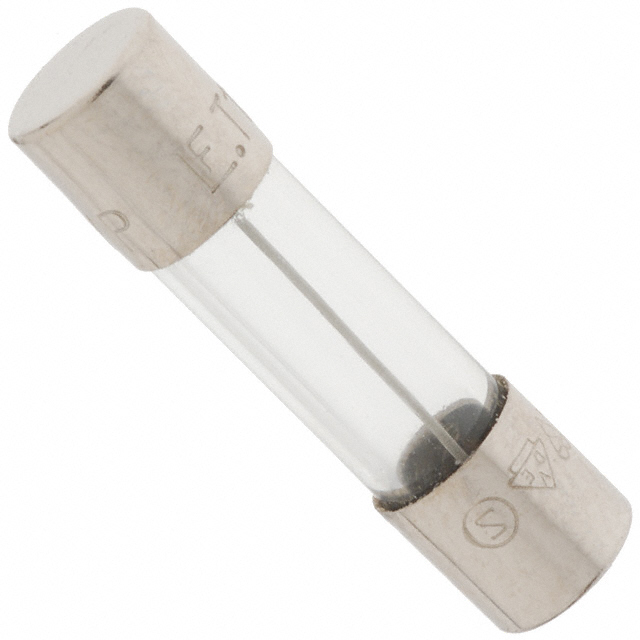

218 系列 延时 250 V 10 A 5 x 20 mm 玻璃管 保险丝

218 Series time delay glass fuses are designed to International IEC Standards for use globally.

.

*Agency Approvals: **VDE approved through 6.3 amps; BSI approved 0.8-6.3 amps; Recognized under the Components Program of Underwriters Laboratories and accepted by CSA through 15 amps; METI approved 1-15 amps; CCC approved through 6.3 amps; K Mark approved through 10 amps.

立创商城:
10A 250V

艾睿:
Be protected by adding a miniature 0218010.HXP fuse developed by Littelfuse. Its maximum power dissipation is 4Typ W. This device has a maximum power dissipation of 4Typ W. This device has a current rating of 10. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0218010.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm.

Allied Electronics:
Fuse; Cylinder; Slow Blow/Time Lag; 10A; Dims 5x20mm; Glass; Cartridge; 250VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 10A 250V Holder Cartridge 5 X 20mm Glass Bulk

TME:
Fuse: fuse; time-lag; glass; 10A; 250VAC; 5x20mm; brass

Verical:
Fuse Miniature Slow Blow Acting 10A 250V Holder Cartridge 5 X 20mm Glass Bulk CE/CSA/KC/PSE/UL/VDE

Newark:
# LITTELFUSE  0218010.HXP  Fuse, Cartridge, Slo-Blo 218 Series, 10 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 100 A

儒卓力:
**10A 250V slow 5x20 glass IEC **
