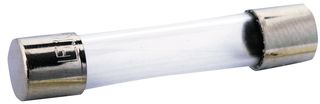

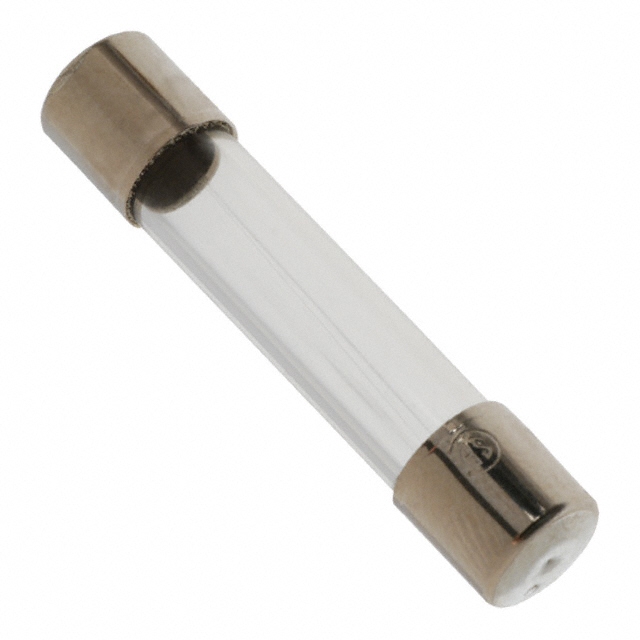

0312004.HXP

312 系列 快熔型 250 V 4 A 6.4 x 32 mm 3AG 玻璃管 保险丝

A standard for cost-effective reliability and performance in circuit protection, the 3AG fuse satisfies a broad range of application requirements.

**Features**

* Fast-Acting Protection of Electronic Equipment and Appliances

* The “Standard” Fast-Acting Glass Tube Fuse

**Specifications**

* For Low Time Lag Usage

* Size: 11⁄4 × 1⁄4"

* Maximum 250 V

* UL Listed and CSA Certified

贸泽:
保险丝管 250V 4A Fast Acting

艾睿:
Be protected by adding a miniature 0312004.HXP fuse developed by Littelfuse. This device has a current rating of 4. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0312004.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from glass. This product is 31.75 mm long with a diameter of 6.35 mm.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 4A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Glass; 250VAC

Jameco:
3AG Type Fast Acting 4A Glass Fuses 312 Series

Chip1Stop:
Fuse Miniature Fast Acting 4A 250V Holder Cartridge 6.3 X 32mm Glass Bulk

TME:
Fuse: fuse; quick blow; glass; 4A; 250VAC; 6,3x32mm; Package: bulk

Verical:
Fuse Miniature Fast Acting 4A 250V Holder Cartridge 6.3 X 32mm Glass Bulk CE/CSA/KC/PSE/UL

Newark:
# LITTELFUSE  0312004.HXP  Fuse, Cartridge, 312 Series, 4 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", 200 A
