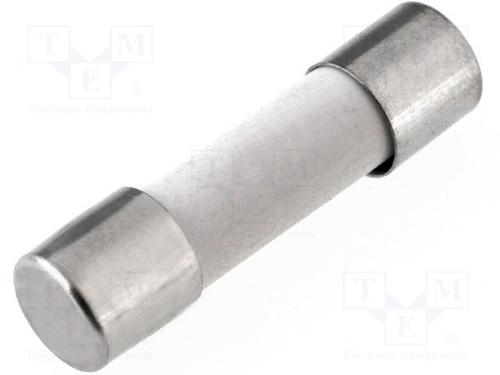

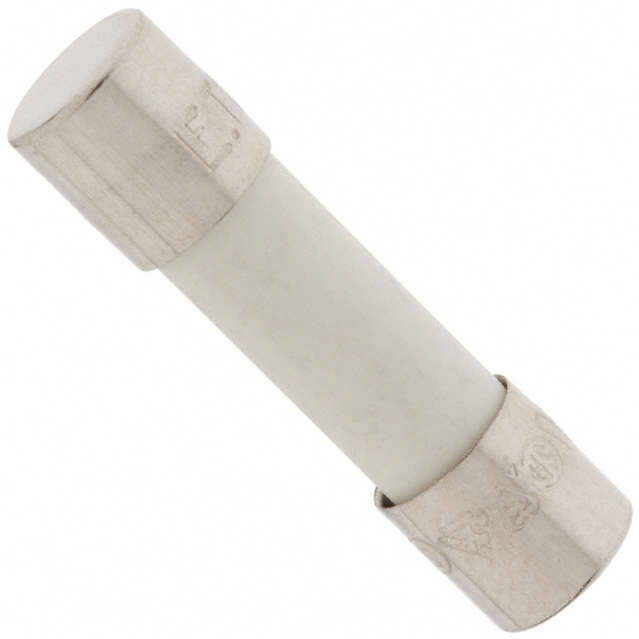

215 系列 延时 250 V 5 A 5 x 20 mm 陶瓷管 保险丝
The is a 5A/250VAC slow blow Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. Provides remarkable interrupting capacity. The 215-series cartridge fuse designed to International IEC standards for use globally. Meets the IEC 60127-2, sheet 5 specification for time-lag fuses. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- 100mV Maximum voltage drop
- .
- 4W Maximum power dissipation at 1.5ln
- .
- 0.0153R Nominal cold resistance
- .
- -55 to 125°C Operating temperature range
额定电压DC 250 V
额定电压AC 250 V
额定电流 5 A
耗散功率 4 W
电阻 0.0153 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 4 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0215005.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0215005.MXGP 力特 | 完全替代 | 0215005.HXP和0215005.MXGP的区别 |
215005 力特 | 完全替代 | 0215005.HXP和215005的区别 |
0215005.H 力特 | 完全替代 | 0215005.HXP和0215005.H的区别 |
