324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse

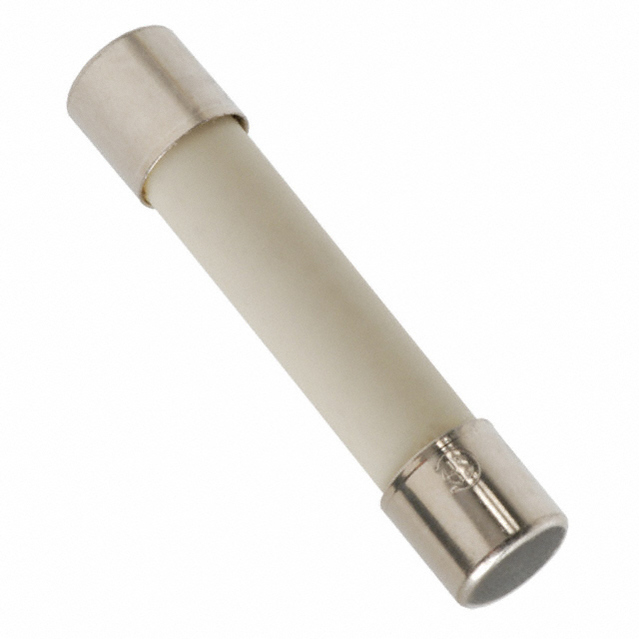

The is a 15A/250VAC fast acting Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. The 314-series 3AB fast acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
- .
- 0.00505R Nominal cold resistance
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 125 V
额定电压AC 250 V
额定电流 15 A
电阻 0.00505 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 280 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0314015.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
314015.MXP 力特 | 完全替代 | 0314015.MXP和314015.MXP的区别 |
0314015.HXP 力特 | 类似代替 | 0314015.MXP和0314015.HXP的区别 |
0314015.VXP 力特 | 类似代替 | 0314015.MXP和0314015.VXP的区别 |
