0224.750HXP

225分之224系列无铅2AG ，快熔型 224/225 Series Lead-Free 2AG, Fast-Acting

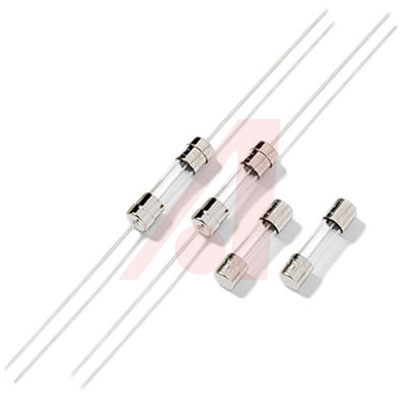

The 2AG fuse provides the same performance characteristics as the universal standard 3AG design in less than one-third the space. These subminiature fuses offer top quality, reliability and space-saving protection for your new designs. Available with pigtail leads for direct soldering or for use with #111501 mating PCB fuse clips. The 2AG Series is UL and CSA Approved.

艾睿:
Be protected by adding a subminiature 0224.750HXP fuse developed by Littelfuse. This device has a current rating of 0.75. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0224.750HXP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 14.48 mm long with a diameter of 4.7 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 125 VDC. Its fuse is made from glass.

Allied Electronics:
Fuse; Submin; Fast Acting; 0.75A; Sz 2AG; Supplemental; Dims 0.184x0.57"; Glass; Axial

Verical:
Fuse Subminiature Fast Acting 0.75A 250V Axial 5 X 15mm Glass Bulk

Newark:
# LITTELFUSE  0224.750HXP  Fuse, Cartridge, 224 Series, 750 mA, 250 V, 5mm x 15mm, 35 A
