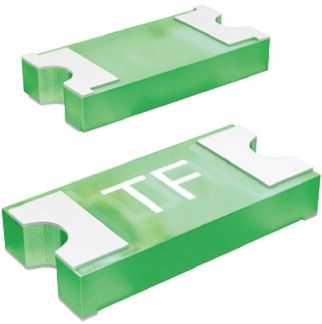

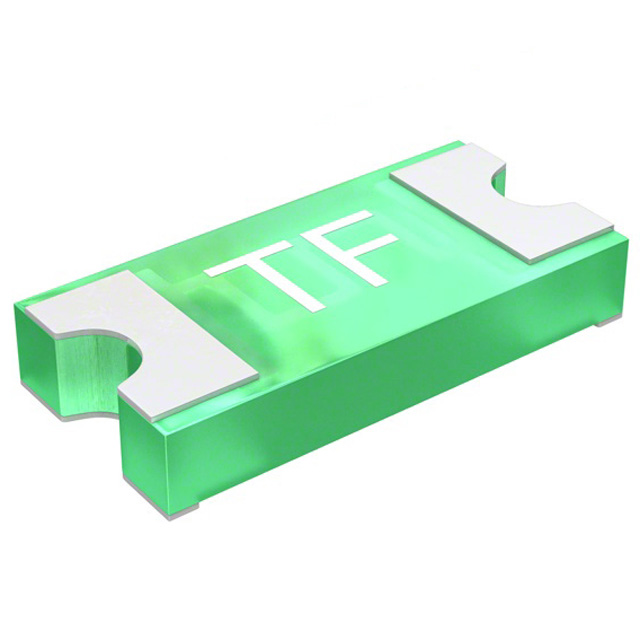

LITTELFUSE 0468002.NR. 保险丝, SMD, 2A, 1206, 延时型
468 系列
Littelfuse 468 系列是小型、薄膜、时滞型熔丝,设计用于空间受限的应用中的次级电路保护,例如的手持式便携式电子设备。
欧时:
### Littelfuse 468 系列Littelfuse 468 系列是小型、薄膜、时滞型熔丝,设计用于空间受限的应用中的次级电路保护,例如的手持式便携式电子设备。### 表面安装技术_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等
e络盟:
表面安装保险丝, 2 A, Slo-Blo系列, 63 VAC, 63 VDC, 延迟, 1206
艾睿:
Be protected by adding a chip 0468002.NR fuse developed by Littelfuse. This device has a maximum power dissipation of 0.1545 W. This device has a current rating of 2. Its maximum power dissipation is 0.1545 W. This fuse has an operating temperature range of -55 °C to 90 °C. It has 2 terminals. The 0468002.NR fuse has a solder pad termination style. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. Its fuse is made from epoxy. This product is 3.18 mm long, 0.58 mm tall and 1.52 mm deep. The maximum AC voltage rating is 63 VAC and the maximum DC voltage rating is 63 VDC.
Allied Electronics:
2A F Non-Resettable Surface Mount Fuse, 63 V
Chip1Stop:
Fuse Chip Slow Blow Acting 2A 63V SMD Solder Pad 1206 Epoxy T/R
Verical:
Fuse Chip Slow Blow Acting 2A 63V SMD Solder Pad 1206 3.18 X 1.52 X 0.635mm Epoxy T/R CSA
Newark:
# LITTELFUSE 0468002.NR Fuse, Surface Mount, Slo-Blo Series, 2 A, 63 VAC, 63 VDC, Time Delay, 1206
儒卓力:
**2A 63V slow 1206 SMD TN **
Win Source:
FUSE BOARD MNT 2A 63VAC/VDC 1206
额定电压DC 63 V
额定电压AC 63 V
额定电流 2 A
耗散功率 0.1545 W
电阻 0.0325 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
耗散功率Max 0.1545 W
额定电压 63 V
额定电压DC Max 63 V
额定电压AC Max 63 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.18 mm
宽度 1.52 mm
高度 0.58 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 安全, Portable Devices, Safety, 便携式器材, Computers & Computer Peripherals, 消费电子产品, Consumer Electronics, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0468002.NR Littelfuse 力特 | 当前型号 | 当前型号 |
0468002.NRHF 力特 | 类似代替 | 0468002.NR和0468002.NRHF的区别 |
MC12CT 002 Multicomp | 功能相似 | 0468002.NR和MC12CT 002的区别 |
