225分之224系列无铅2AG ，快熔型 224/225 Series Lead-Free 2AG, Fast-Acting

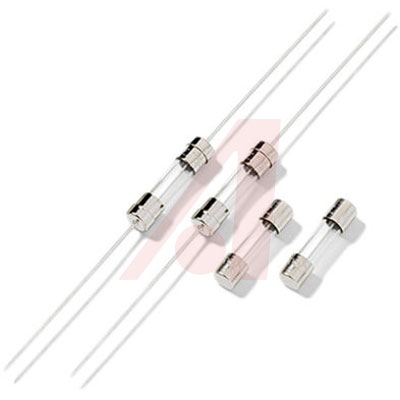

The 2AG fuse provides the same performance characteristics as the universal standard 3AG design in less than one-third the space. These subminiature fuses offer top quality, reliability and space-saving protection for your new designs. Available with pigtail leads for direct soldering or for use with #111501 mating PCB fuse clips. The 2AG Series is UL and CSA Approved.
艾睿:

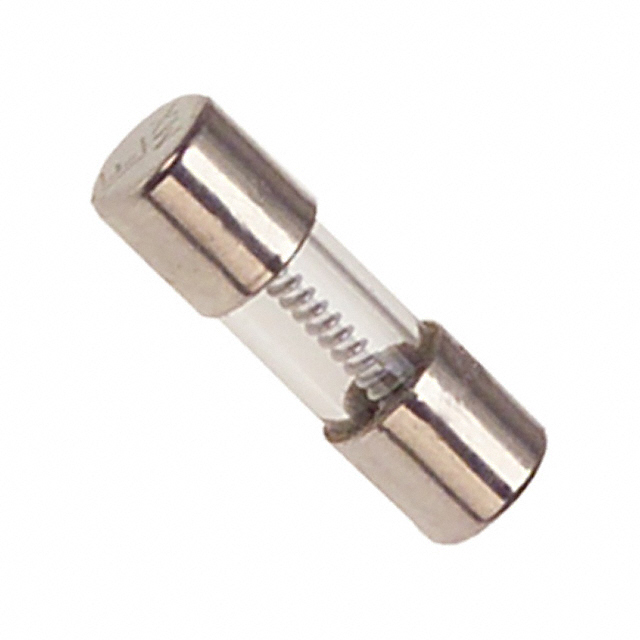

A great alternative to a circuit breaker, this a subminiature 022901.5HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 1.5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 022901.5HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC. This product is 14.48 mm long with a diameter of 4.5 mm.
Allied Electronics:
Fuse; Cylinder; Slow Blow/Time Lag; 1.5A; Sz 2AG; Supplemental; Dims 0.177x0.57"; Clip
Chip1Stop:
Fuse Subminiature Slow Blow Acting 1.5A 250V Holder Cartridge 5 X 15mm Glass Bulk
Verical:
Fuse Subminiature Slow Blow Acting 1.5A 250V Holder Cartridge 5 X 15mm Glass Bulk CE/CSA/PSE/UL
Newark:
# LITTELFUSE 022901.5HXP Fuse, Cartridge, 229 Series, 1.5 A, 250 V, 5mm x 15mm, 100 A
