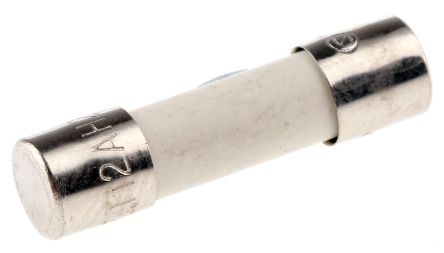

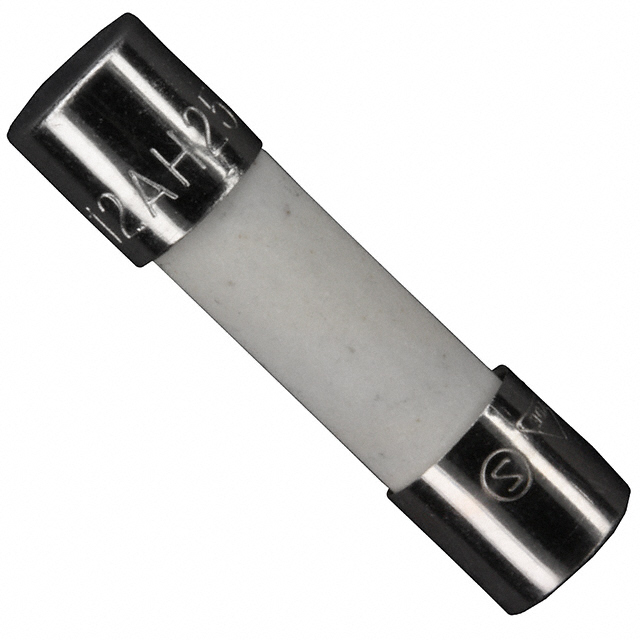

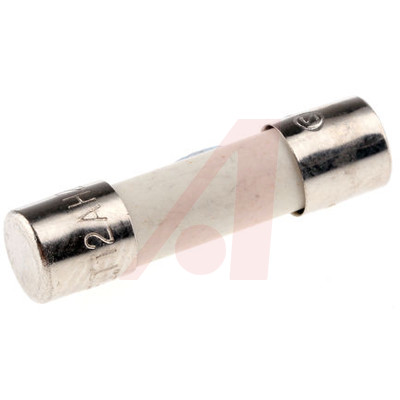

0215012.MXP

215 系列 延时 250 V 12 A 5 x 20 mm 陶瓷管 保险丝

反浪涌 T HBC - 陶瓷体，5x20

延时陶瓷体熔丝管特别适用于需要耐受浪涌的应用。 断开容量 1.5KA @ 250 V 交流

欧时:
Littelfuse 保险管, 熔断速度 T, 12A, 直径 5.2mm, 5 x 20mm, 250V ac

立创商城:
12A 250V 延时型

贸泽:
保险丝管 250V 12A

艾睿:
A great alternative to a circuit breaker, this a miniature 0215012.MXP fuse from Littelfuse will protect your electronics. Its maximum power dissipation is 4 W. This device has a maximum power dissipation of 4 W. This device has a current rating of 12. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0215012.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 20 mm long with a diameter of 5.2 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic.

Allied Electronics:
FUSE 5X20 T HBC 12A/250V P

Chip1Stop:
Fuse Miniature Slow Blow Acting 12A 250V Holder Cartridge 5 X 20mm Ceramic Bulk CE/CSA/PSE/SEMKO/UL

TME:
Fuse: fuse; time-lag; ceramic; 12A; 250VAC; 5x20mm; brass; 215

Verical:
Fuse Miniature Slow Blow Acting 12A 250V Holder Cartridge 5 X 20mm Ceramic Bulk CE/CSA/PSE/SEMKO/UL

Newark:
# LITTELFUSE  0215012.MXP  Fuse, Cartridge, Slo-Blo 215 Series, 12 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 1.5 kA

儒卓力:
**12A 250V slow 5x20 ceramic **
