0216010.MXEP

216 系列 快熔型 250 V 10 A 5 x 20 mm 轴向引线 陶瓷管 保险丝

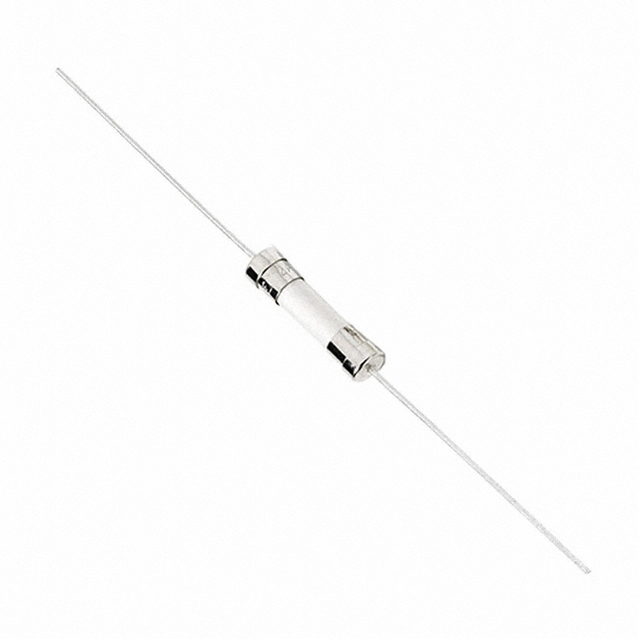

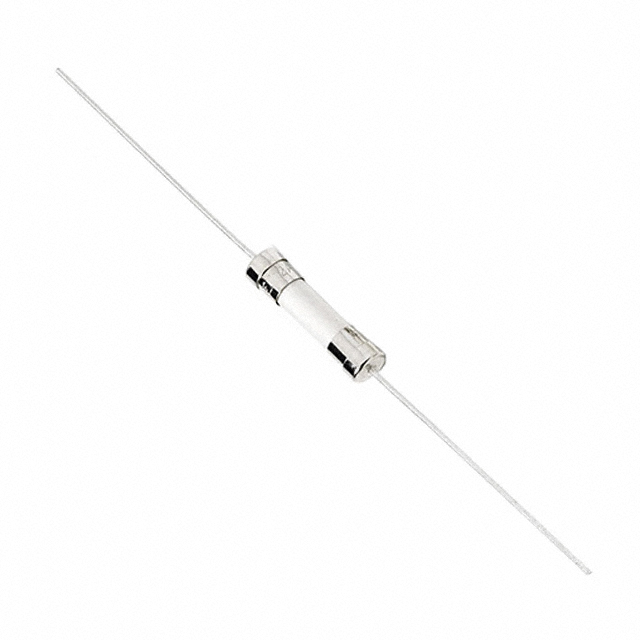

216 Series Fast-Acting 250 V 10 A Ř 5 x 20 mm Axial Lead Ceramic Cartridge Fuse

立创商城:
10A 250V 快熔型

贸泽:
保险丝管 250V 10A Fast Acting

艾睿:
Be protected by adding a miniature 0216010.MXEP fuse developed by Littelfuse. Its maximum power dissipation is 4Typ W. This device has a current rating of 10. This device has a maximum power dissipation of 4Typ W. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0216010.MXEP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 22.5Max mm long with a diameter of 5.8Max mm. Its fuse is made from ceramic. The maximum AC voltage rating is 250 VAC.

Chip1Stop:
Fuse Miniature Fast Acting 10A 250V Axial 5 X 20mm Ceramic Bulk

Verical:
Fuse Miniature Fast Acting 10A 250V Axial 5 X 20mm Ceramic Bulk CE/CSA/KC/PSE/SEMKO/VDE/cULus

Newark:
# LITTELFUSE  0216010.MXEP  Fuse, Cartridge, 216 Series, 10 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 1.5 kA
