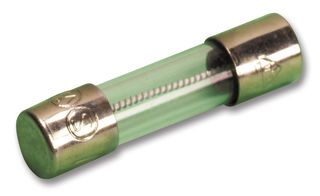

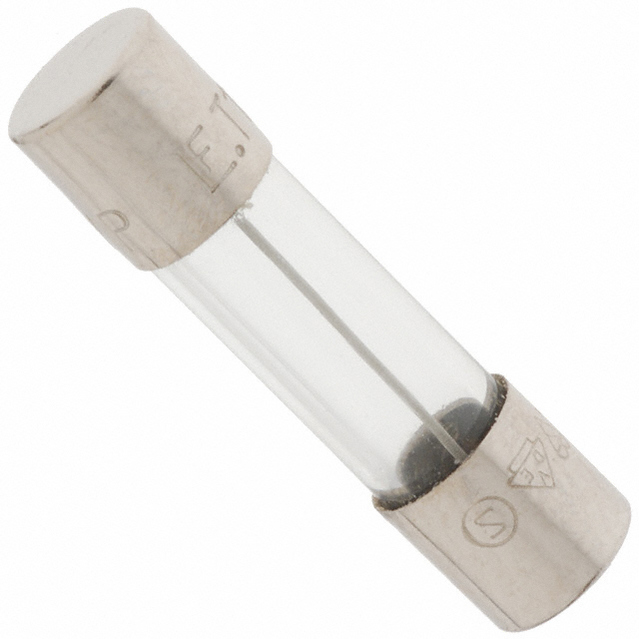

218系列， 5 ×20毫米，延时（SLO - Blo® ）保险丝 218 Series, 5 x 20 mm, Time-Lag Slo-Blo® Fuse
The is a time-delay Cartridge Fuse with ceramic tube, nickel-plated brass cap and tin plated copper leads. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. 5 x 20mm time-Lag glass body cartridge fuse designed to IEC specification.
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 12.5 A
耗散功率 4 W
电阻 0.042 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 4 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
021812.5MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0034.3128 Schurter | 功能相似 | 021812.5MXP和0034.3128的区别 |
