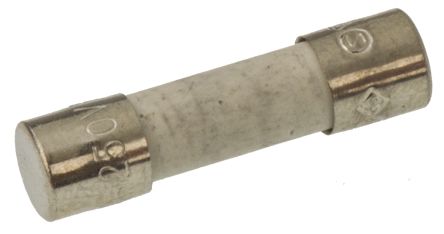

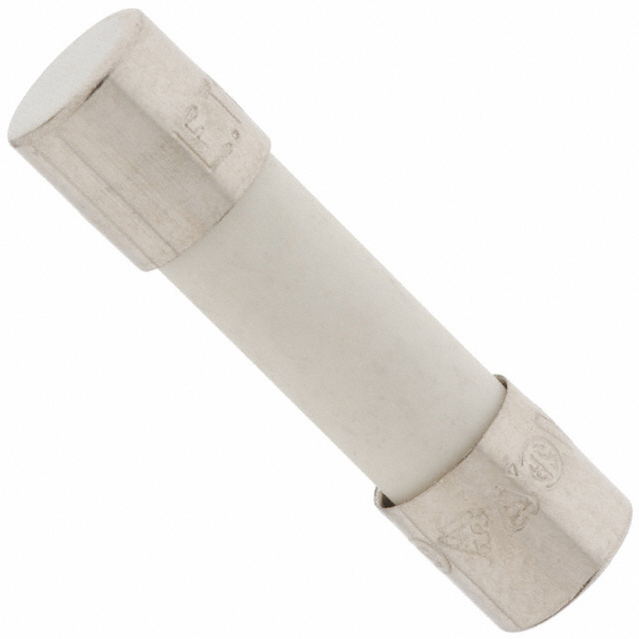

215 系列 延时 250 V 6.3 A 5 x 20 mm 陶瓷管 保险丝
215 系列 5x20mm
Littelfuse 专业 215 系列时滞熔丝解决了各种应用需求,同时提供可靠的性能。 215 系列熔丝可在电器或利用设备中用作附加保护,为内部电路或组件提供保护。
特征:
提供各种电流额定值
符合全球标准
符合 RoHS
无铅
欧时:
Littelfuse 保险管, 熔断速度 T, 6.3A, 直径 5mm, 5 x 20mm, 250V ac
得捷:
FUSE CERAMIC 6.3A 250VAC 5X20MM
立创商城:
6.3A 250V 延时型
艾睿:
A great alternative to a circuit breaker, this a miniature 021506.3MXP fuse from Littelfuse will protect your electronics. Its maximum power dissipation is 4 W. This device has a current rating of 6.3. This device has a maximum power dissipation of 4 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 021506.3MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic. This product is 20 mm long with a diameter of 5.2 mm.
Chip1Stop:
Fuse Miniature Slow Blow Acting 6.3A 250V Holder Cartridge 5 X 20mm Ceramic Bulk CCC/CE/CSA/KC/PSE/SEMKO/UL/VDE
TME:
Fuse: fuse; time-lag; ceramic; 6.3A; 250VAC; 5x20mm; brass; 215
Verical:
Fuse Miniature Slow Blow Acting 6.3A 250V Holder Cartridge 5 X 20mm Ceramic Bulk BSI/CCC/CE/CSA/KC/PSE/SEMKO/VDE/cULus
Newark:
# LITTELFUSE 021506.3MXP Fuse, Cartridge, Slo-Blo 215 Series, 6.3 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 1.5 kA
儒卓力:
**6.3A 250V slow 5x20 ceramic **
Win Source:
FUSE CERAMIC 6.3A 250VAC 5X20MM
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 6.3 A
耗散功率 4 W
电阻 0.0108 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 4 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.20 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
021506.3MXP Littelfuse 力特 | 当前型号 | 当前型号 |
021506.3HXP 力特 | 完全替代 | 021506.3MXP和021506.3HXP的区别 |
021506.3TXP 力特 | 完全替代 | 021506.3MXP和021506.3TXP的区别 |
021506.3MXEP 力特 | 类似代替 | 021506.3MXP和021506.3MXEP的区别 |
