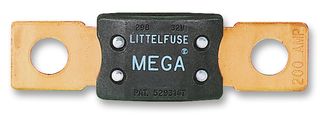

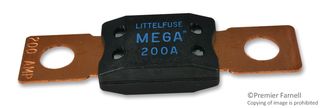

LITTELFUSE 0298200.ZXEH 汽车保险丝, 向下式螺栓, MEGA 298系列, 200 A, 延迟, 32 V, 68.58mm x 16.2mm x 10.67mm
MEGA 熔丝
Littelfuse MEGA 熔丝专为高电流电路保护设计，采用扩散丸技术，并具有延时特性。 MEGA 熔丝特别适用于电池和交流发电机保护应用及其他需要超高电流保护的大规格电缆。
欧时:
Time Delay MEGA Fuse 200A 32V
立创商城:
200A 32V
得捷:
FUSE AUTO 200A 32VDC AUTO LINK
e络盟:
汽车保险丝, 向下式螺栓, 延迟, 200 A, 32 V, 68.58mm x 16.2mm x 10.67mm, MEGA 298系列
艾睿:
Be protected by adding an automotive 0298200.ZXEH fuse developed by Littelfuse. This device has a current rating of 200. This fuse has an operating temperature range of -40 °C to 125 °C. It has 2 terminals. The 0298200.ZXEH fuse has a bolt down termination style. The maximum DC voltage rating is 32 VDC. This product is 29.21 mm long, 10.67 mm tall and 19.05 mm deep.
Allied Electronics:
Fuse; MEGA; Automotive; PPA; 200A; 32V; M8 Copper Bolt Terminals
Chip1Stop:
Fuse Automotive Slow Blow Acting 200A 32V Bolt Bolt Down 29.21 X 19.05 X 10.67mm
Verical:
Fuse Automotive Slow Blow Acting 200A 32V Bolt Bolt Down 29.21 X 19.05 X 10.67mm
Newark:
# LITTELFUSE 0298200.ZXEH Fuse, Automotive, Bolt Down, 200 A, MEGA 298 Series, Time Delay, 32 V, 68.58mm x 16.2mm x 10.67mm
额定电压DC 32 V
额定电流 200 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 32 VDC
额定电压DC Max 32 V
引脚数 2
封装 Auto Link
长度 68.58 mm
宽度 19.05 mm
高度 10.67 mm
封装 Auto Link
颜色 Blue
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety, Power Management, 安全, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
