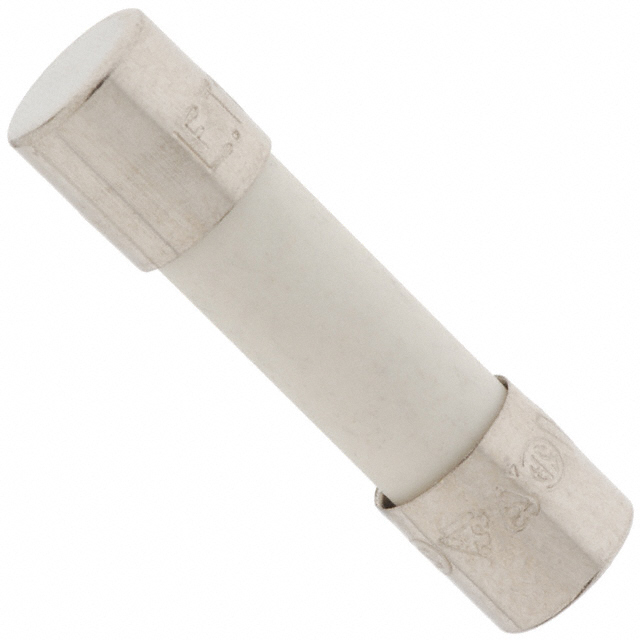

0216005.MXP

216 系列 快熔型 250 V 5 A 5 x 20 mm 陶瓷管 保险丝

快速作用 F HBC - 陶瓷，5 x 20 mm

典型应用包括半导体的短路保护，例如闸流晶体管、二极管和三端双向可控硅开关元件。 请注意：值大于 6.3A 时，推荐使用开口型熔丝座，以降低全额定或接近全额定电流时假性跳闸的风险。

非常高的断开容量

良好的机械/震动特性

陶瓷管主体为沙子填充

得捷:
FUSE CERAMIC 5A 250VAC 5X20MM

欧时:
Littelfuse 保险管, 熔断速度 F, 5A, 直径 5mm, 5 x 20mm, 250V ac

立创商城:
快断 5A 250VAC

艾睿:
A great alternative to a circuit breaker, this a miniature 0216005.MXP fuse from Littelfuse will protect your electronics. Its maximum power dissipation is 4Typ W. This device has a maximum power dissipation of 4Typ W. This device has a current rating of 5. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0216005.MXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 20 mm long with a diameter of 5.2 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic.

Allied Electronics:
Quick acting F HBC min fuse; 5A 5x20mm

TME:
Fuse: fuse; quick blow; ceramic; 5A; 250VAC; 5x20mm; brass; 216

Verical:
Fuse Miniature Fast Acting 5A 250V Holder Cartridge 5 X 20mm Ceramic Bulk CCC/CE/CSA/KC/PSE/SEMKO/VDE/cULus

Newark:
# LITTELFUSE  0216005.MXP  Fuse, Cartridge, 216 Series, 5 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 1.5 kA

儒卓力:
**5A 250V 5X20 fast ceramic **
