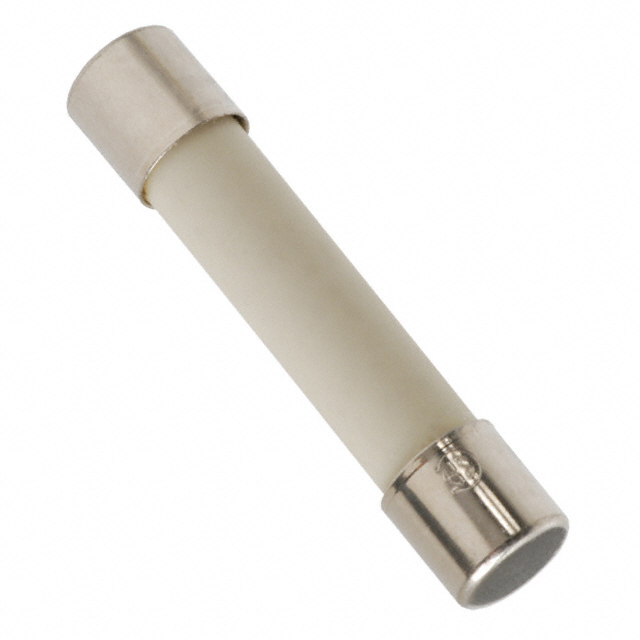

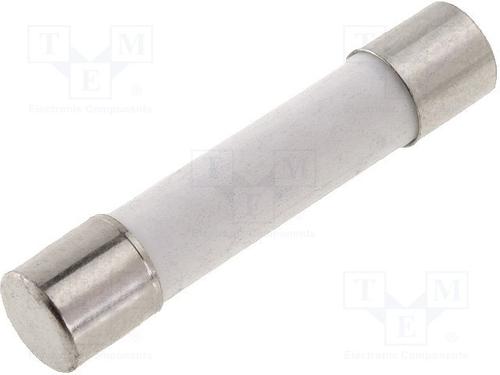

0326002.HXP

326 系列 慢断 250 V 2 A 31.75 x 6.35 mm 陶瓷管 保险丝

Ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected. 250 Volts. 1⁄4" × 11⁄4".

.

*Approvals:** Listed by UL and Certified by CSA from 1⁄4 through 30 Amps. Recognized under the Components Program of UL from 12 through 30 Amps. **Electrical Characteristics. % of Ampere Rating/Opening Time:** 110% — 4 hrs. min., 135% — 1 hr. max., 200% — 5 Sec min.

贸泽:
保险丝管 250V 2A Slo-Blo

艾睿:
A great alternative to a circuit breaker, this a miniature 0326002.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 2. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0326002.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from ceramic. This product is 31.75 mm long with a diameter of 6.35 mm. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Cylinder; Slow Blow; 2A; Sz 3AG; Supplemental; Dims 0.25x1.25"; Ceramic; 250VAC

Chip1Stop:
Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

TME:
Fuse: fuse; time-lag; ceramic; 2A; 250VAC; 6,3x32mm; Package: bulk

Verical:
Fuse Miniature Slow Blow Acting 2A 250V Holder Cartridge 6.3 X 32mm Ceramic Bulk CE/CSA/KC/PSE/UL/cULus

Newark:
Fuse, Cartridge, Slow Blow, 2 A, 250 V, 6.3mm x 32mm, 1/4" x 1-1/4", Slo-Blo 326 Series

儒卓力:
**2A 250V SLOW 6.3x32 ceramic UL **
