215系列， 5 ×20毫米，延时（SLO - Blo® ）保险丝 215 Series, 5 x 20 mm, Time-Lag Slo-Blo® Fuse

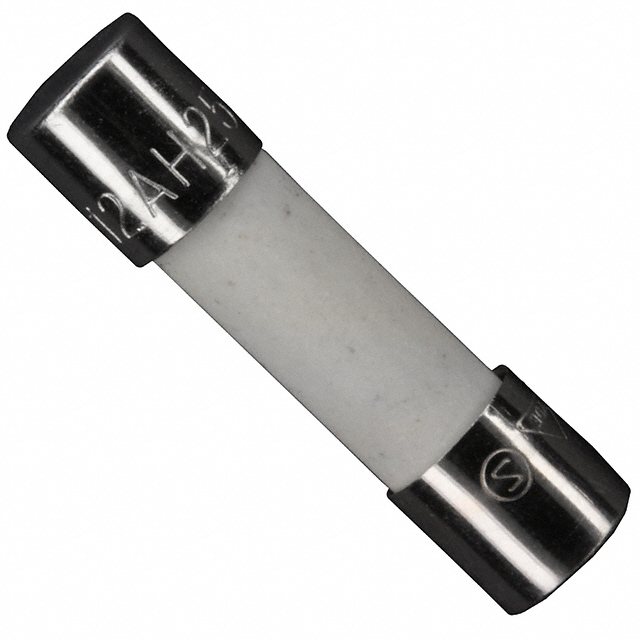

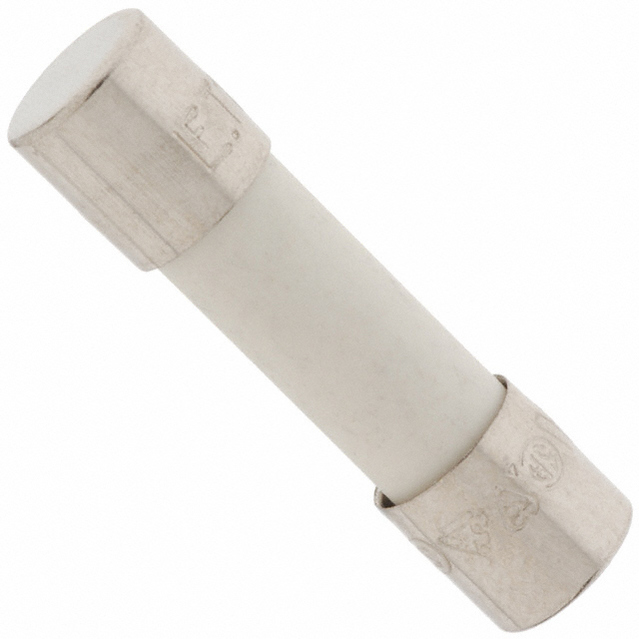

The 215 series Slo-Blo® surge withstanding Time Lag Fuse made of ceramic body with nickel-plated brass caps and tin-plated copper leads. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- Designed to international IEC standard for use globally
- .
- Available in cartridge and axial lead form
- .
- Meets the IEC 60127-2, Sheet 5 specification for time-lag fuses
- .
- High breaking capacity
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 1.25 A
耗散功率 2.5 W
电阻 0.081 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 2.5 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.20 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
02151.25MXP Littelfuse 力特 | 当前型号 | 当前型号 |
02151.25HXP 力特 | 完全替代 | 02151.25MXP和02151.25HXP的区别 |
02151.25MXESPP 力特 | 完全替代 | 02151.25MXP和02151.25MXESPP的区别 |
02151.25TXP 力特 | 完全替代 | 02151.25MXP和02151.25TXP的区别 |
