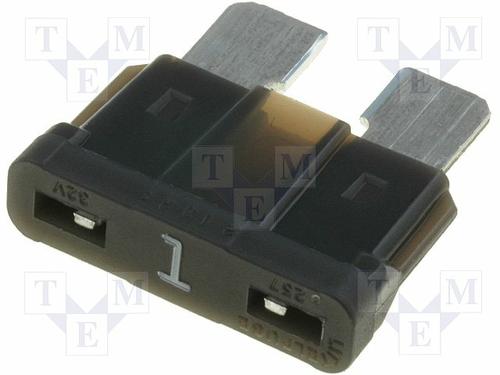

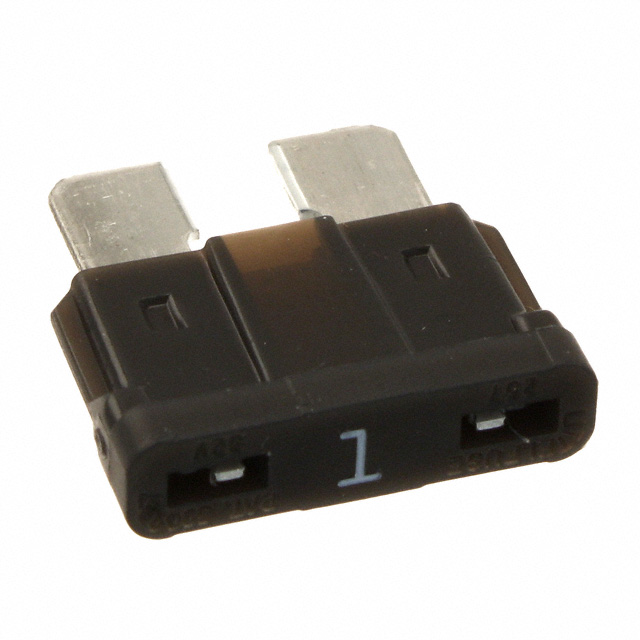

LITTELFUSE 0287001.PXCN 汽车保险丝, ATOF系列, 1 A, 32 V
ATOF 熔丝
Littelfuse ATOF 汽车熔丝易于识别和更换,适合用于种类繁多的低电压电子应用。
欧时:
Littelfuse 1A 黑色 车用插片式熔断器 0287001.PXCN, 32V dc, 19.1mm x 5.1mm x 12.3mm
得捷:
FUSE AUTO 1A 32VDC BLADE
立创商城:
1A 32V
艾睿:
Be protected by adding a blade 0287001.PXCN fuse developed by Littelfuse. This device has a current rating of 1. This fuse has an operating temperature range of -40 °C to 105 °C. It has 2 terminals. The maximum DC voltage rating is 32 VDC. Its fuse is made from polyamide 66. This product is 19.1 mm long, 12.3 mm tall and 5.1 mm deep.
Allied Electronics:
Fuse; ATOF; Automotive; 1A; 32V; Nylon w/Tin-Plated Blade Terminals; Black
TME:
Fuse: fuse; automotive; 1A; 32V; 19mm; ATO
Verical:
Fuse Blade 1A 32V Socket Flat 19.1 X 5.1 X 12.3mm Polyamide 66 Automotive CSA/UL
Newark:
Fuse, Automotive, 1 A, 32 V, ATOF Series
儒卓力:
**1A 32V ATOF Low-Current black **
额定电压DC 32 V
额定电流 1 A
电阻 123 mΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 32 V
额定电压DC Max 32 V
引脚数 2
封装 Blade, ATO/ATC
长度 19.1 mm
宽度 5.1 mm
高度 12.3 mm
封装 Blade, ATO/ATC
颜色 Black
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
制造应用 Automotive, Safety, 车用, 安全, Automotive, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0287001.PXCN Littelfuse 力特 | 当前型号 | 当前型号 |
0257001.PXPV 力特 | 完全替代 | 0287001.PXCN和0257001.PXPV的区别 |
0287001.H 力特 | 完全替代 | 0287001.PXCN和0287001.H的区别 |
0257001.L 力特 | 完全替代 | 0287001.PXCN和0257001.L的区别 |
