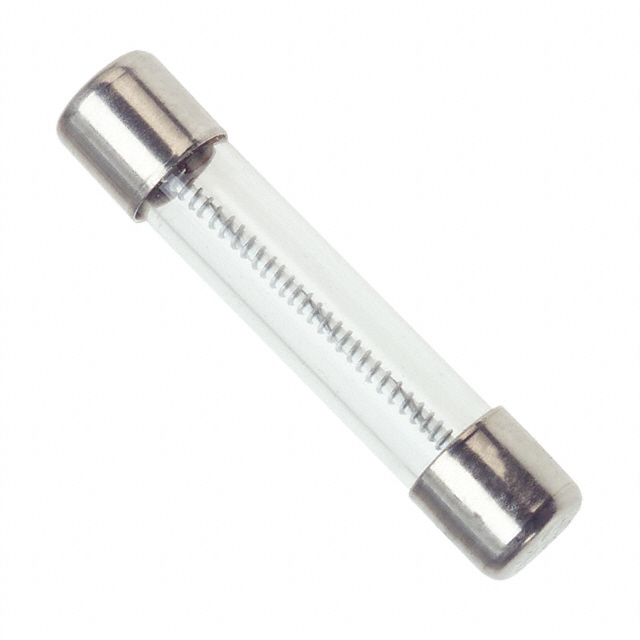

三百十五分之三百一十三系列无铅3AG ， SLO- Blo®保险丝 313/315 Series Lead-Free 3AG, Slo-Blo® Fuse
The 313 series Slo-Blo® Time Lag Fuse made of glass body with nickel-plated brass end caps. The fuse catalogue number with the suffix-ID instantly identifies itself upon opening by showing a discoloration of its glass body. The guesswork and time consuming circuit testing are eliminated. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- Reliable performance
- .
- In accordance with UL Standard 248-14
- .
- Available in cartridge and axial lead format and with various forming dimensions
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 400 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0313.400MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0313.400HXP 力特 | 类似代替 | 0313.400MXP和0313.400HXP的区别 |
