0235003.HXP

235 系列 快熔型 250 V 3 A 5 x 20 mm 玻璃管 保险丝

235 Series fast-acting glass fuses are designed to UL/CSA/ANCE 248 Standard.

.

*Agency Approvals:** UL listed, CSA Certified, Approved by METI from 1-5 amps. **Blow Time:** 110%, 4 hour minimum; 135%, 1 hour maximum; 200%, 5 seconds maximum.

艾睿:

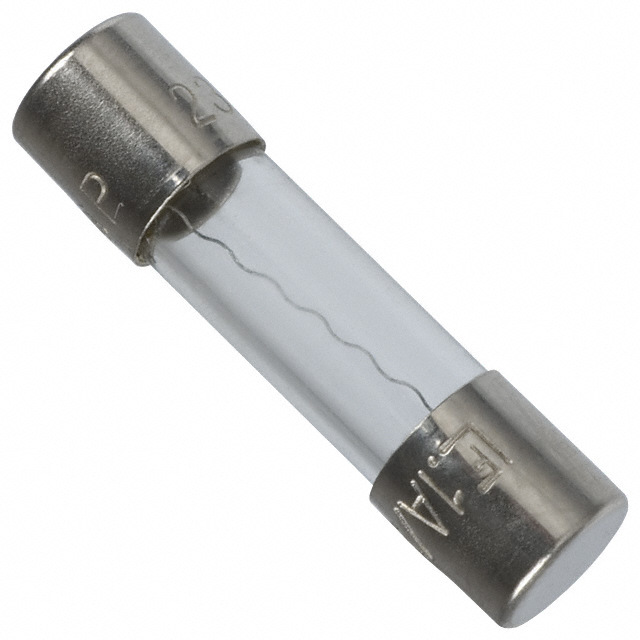

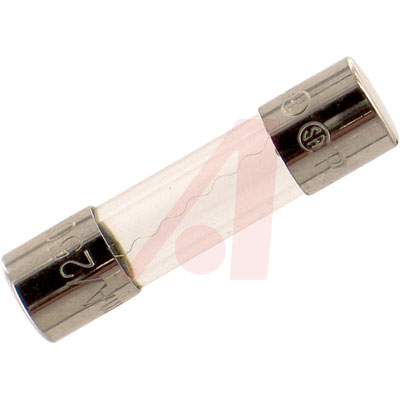

A great alternative to a circuit breaker, this a miniature 0235003.HXP fuse from Littelfuse will protect your electronics. This device has a current rating of 3. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0235003.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. This product is 20 mm long with a diameter of 5.2 mm. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
Fuse; Cylinder; Fast Acting; 3A; Dims 5x20mm; Glass; Cartridge; 250VAC; 0.035Ohms; Clip

Chip1Stop:
Fuse Miniature Fast Acting 3A 250V Holder Cartridge 5 X 20mm Glass Bulk

Verical:
Fuse Miniature Fast Acting 3A 250V Holder Cartridge 5 X 20mm Glass Bulk CE/CSA/PSE/UL

Newark:
# LITTELFUSE  0235003.HXP  Fuse, Cartridge, 235 Series, 3 A, 250 V, 5mm x 20mm, 0.2" x 0.79", 100 A
