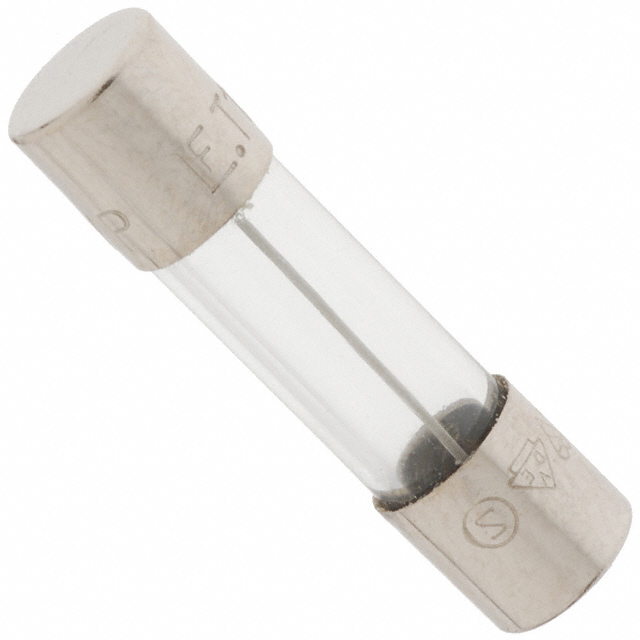

217 系列 快熔型 250 V 0.063 A 5 x 20 mm 玻璃管 保险丝
Be protected by adding a miniature fuse developed by . Its maximum power dissipation is 1.6Typ W. This device has a maximum power dissipation of 1.6Typ W. This device has a current rating of 0.063. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0217.063HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 5.2 mm.
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.063 A
耗散功率 1.6 W
电阻 10.45 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0217.063HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0217.063MXP 力特 | 类似代替 | 0217.063HXP和0217.063MXP的区别 |
19300631009 力特 | 类似代替 | 0217.063HXP和19300631009的区别 |
0217.063VXP 力特 | 功能相似 | 0217.063HXP和0217.063VXP的区别 |
