0452001.MRL

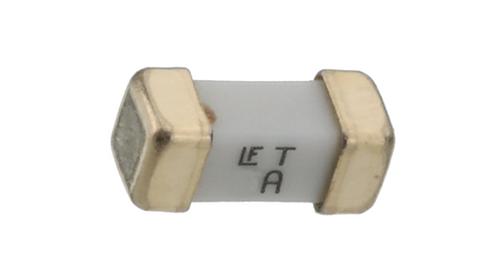

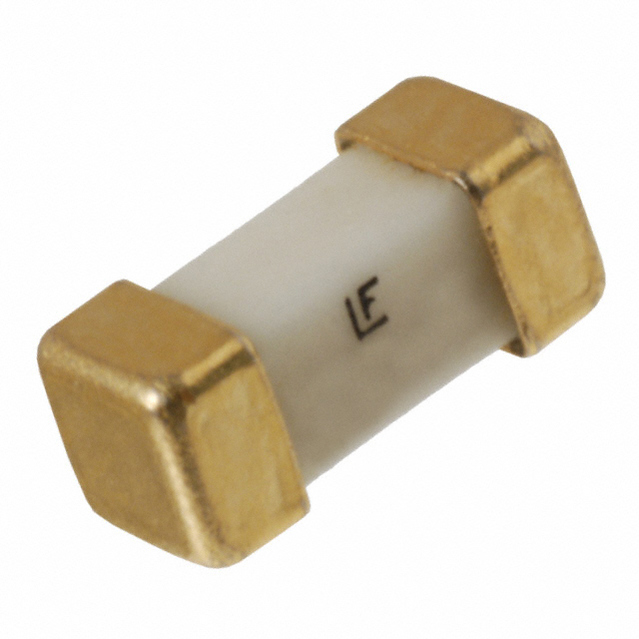

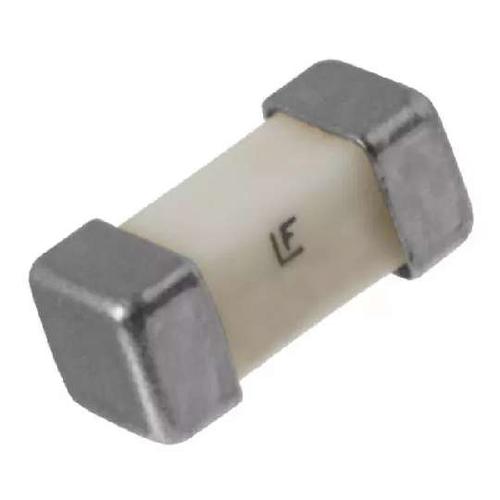

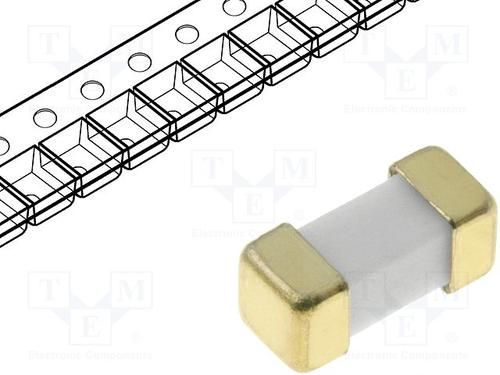

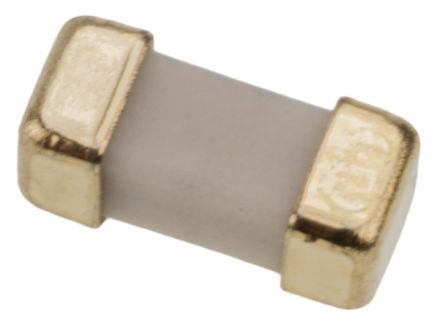

LITTELFUSE  0452001.MRL  保险丝, 1A, 125VAC/VDC, 延时型, SMD

452 系列 NANO2 表面安装熔丝

Littelfuse 452 系列 NANO2 表面安装熔丝具有增强的浪涌耐受特性，有助于解决容纳浪涌电流引起的讨厌的“开路”问题，浪涌电流通常会导致快熔式熔丝开路。 452 系列 NANO2 表面安装熔丝适合广泛的应用。

延时器

小尺寸

低温降额

### 认可

CSA, UL

欧时:
### Littelfuse 452 系列 NANO2 表面安装熔丝Littelfuse 452 系列 NANO2 表面安装熔丝具有增强的浪涌耐受特性，有助于解决容纳浪涌电流引起的讨厌的“开路”问题，浪涌电流通常会导致快熔式熔丝开路。 452 系列 NANO2 表面安装熔丝适合广泛的应用。延时器 小尺寸 低温降额 ### 认可CSA, UL### 表面安装技术_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用，可大大节省空间（和时间）。 FF 类型最适用于保护高值硅 IC，例如，报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

立创商城:
1A 125V 慢断

贸泽:
表面贴装式保险丝 125VAC 1A .225ohms 452 NANO2

e络盟:
表面安装保险丝, 1 A, NANO2 452 Series, 125 V, 125 V, 缓慢熔断, SMD

艾睿:
Be protected by adding a chip 0452001.MRL fuse developed by Littelfuse. This device has a current rating of 1. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0452001.MRL fuse has a solder pad termination style. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. Its fuse is made from ceramic.

Allied Electronics:
Fuse SMD NANO2 Slo-Blo 1A T

Chip1Stop:
Fuse Chip Slow Blow Acting 1A 125V SMD Solder Pad 2410 Ceramic T/R

TME:
Fuse: fuse; time-lag; ceramic; 1A; 125VAC; 125VDC; 6,1x2,7x2,7mm

Verical:
Fuse Chip Slow Blow Acting 1A 125V SMD Solder Pad 6.1 X 2.69mm Ceramic T/R CSA/PSE/UL

Newark:
# LITTELFUSE  0452001.MRL  Fuse, Surface Mount, NANO 452 Series, 1 A, 125 VAC, 32 VDC, Time Delay, SMD

儒卓力:
**1A 125V slow SMD NANO **

Win Source:
FUSE BRD MNT 1A 125VAC/VDC 2SMD
