0251015.MXL

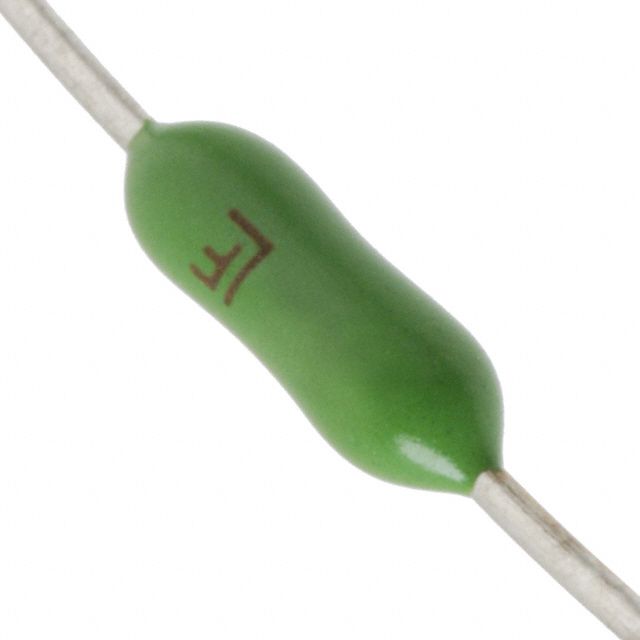

LITTELFUSE  0251015.MXL  保险丝, PCB安装, 15A, 32V

For subminiature circuit protection where short circuit currents may be as high as 300 amperes. Low resistance values, high-speed action, insulated terminations, encapsulated epoxy-coated body. Will withstand vibrations of 10-55 Hz per method 201 of MIL-STD-202, and of 55-2000 Hz at 10 Gs per method 204, test condition C, of MIL-STD-202, and shock of 100 Gs for 6 milliseconds per method 213, test condition I of MIL-STD-202.

.

*Operating Ambient Temperature:** –55°C to 125°C. At –55°C current carrying capacity is 110% of rating; at 25°C, 100% of rating; at 125°C, 80% of rating. Fuses will withstand an axial pull of 7 pounds. **Voltage Rating:** 125 V on 1⁄16-10 amps; 32 V on 12-15 amps. **Body Length:** 0.280". **Lead Length:** 1.50". **Body Diameter:** 0.095". **Lead Diameter:** 0.025" on 1⁄16-10 amps; 0.032 on 12-15 amps.
