213 系列 延时 250 V 0.8 A 5 x 20 mm 玻璃管 保险丝

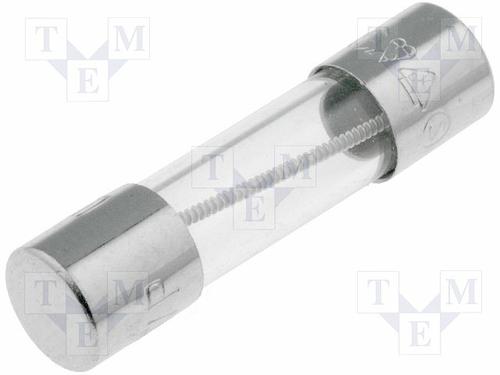

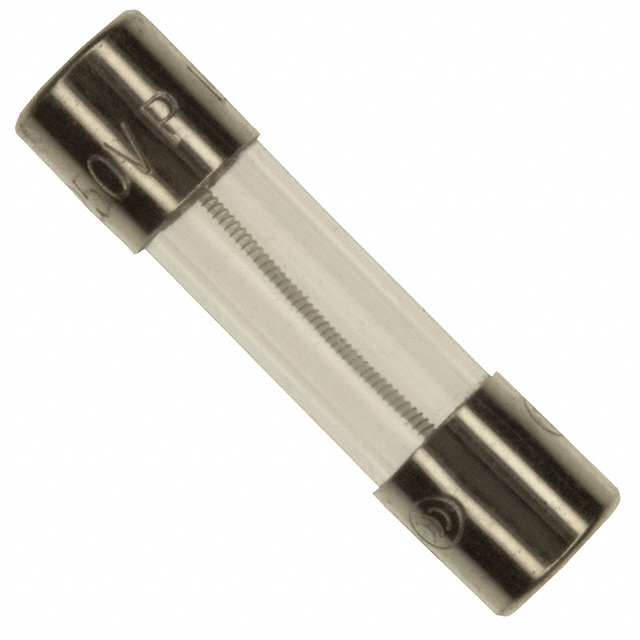

The 213 series Slo-Blo® surge withstanding Time Lag Fuse made of glass body with nickel-plated brass end caps. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- Designed to International IEC Standard for use globally
- .
- Available in cartridge and axial lead form
- .
- Meets the IEC 60127-2, Sheet 3 specification for time-lag fuses
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 250 V
额定电压AC 250 V
额定电流 800 mA
耗散功率 1.6 W
电阻 0.165 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 1.6 W
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 5mm x 20mm
长度 20 mm
直径 5.00 mm
封装 5mm x 20mm
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0213.800MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0213.800MXBP 力特 | 完全替代 | 0213.800MXP和0213.800MXBP的区别 |
0213.800MXEP 力特 | 完全替代 | 0213.800MXP和0213.800MXEP的区别 |
0213.800TXP 力特 | 完全替代 | 0213.800MXP和0213.800TXP的区别 |
