0273002.H

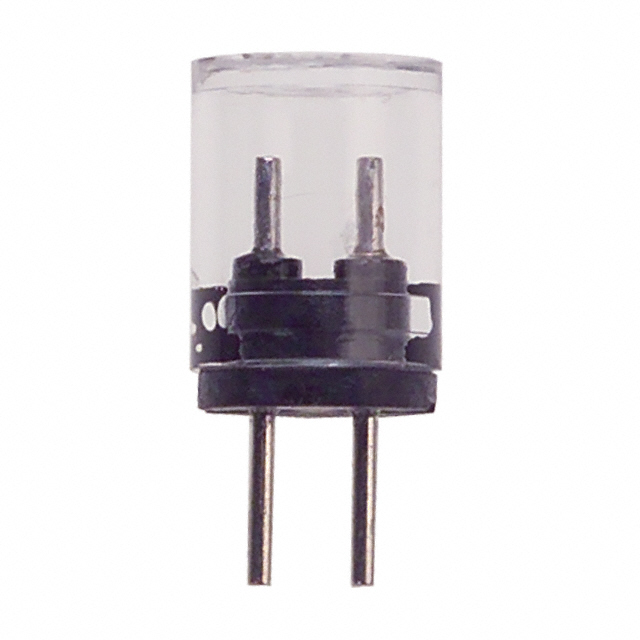

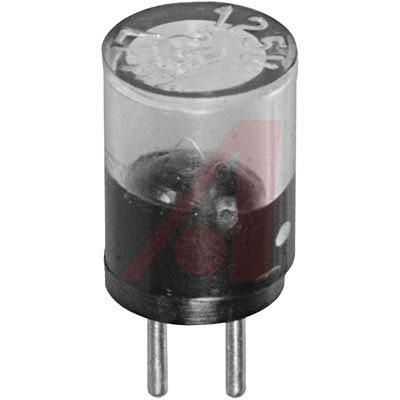

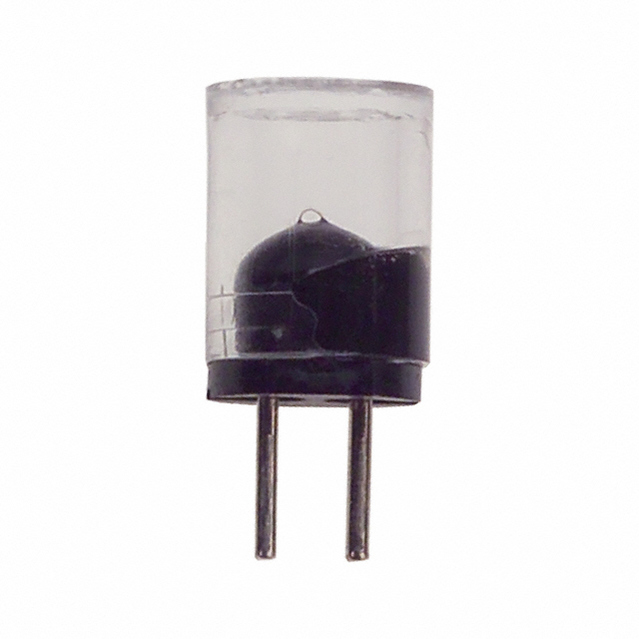

273 系列 特快熔断 125 V 2 A 6.35 x 8.89 mm 径向引线 MICRO™ 保险丝

Very fast-acting. Ideal for printed circuits. Features low resistance and high reliability in ultrafast blowing characteristics. Series 279000 has 1" leads for wiring into circuit. Short circuit interrupting capacity 125 volts, 10,000 amps AC. Series 273000 has 0.170 leads for plugging into subminiature fuse holder.

.

*Blowing Specifications:** 100% — 4 hours minimum; 200% — 5 second maximum; transparent plastic cap. 125 V rating. UL Recognized. CSA Certified.

欧时:
Fuse Very Fast Acting 2A Micro

艾睿:
Be protected by adding a subminiature 0273002.H fuse developed by Littelfuse. This device has a current rating of 2. This fuse has an operating temperature range of -55 °C to 85 °C. It has 2 terminals. The 0273002.H fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 8.89 mm tall with a diameter of 6.35 mm.

Allied Electronics:
Fuse; Subminiature; Very Fast-Acting; 2 A; 125 V; 0.0425 Ohms; Plug-In

Jameco:
Fuse 2A 125 Volt Very Fast Acting 2-Pin

Chip1Stop:
Fuse Subminiature Very Fast Acting 2A 125V Radial 6 X 8mm Bulk CSA

Verical:
Fuse Subminiature Very Fast Acting 2A 125V Radial 6.35 X 8.89mm Bulk CSA

Newark:
# LITTELFUSE  0273002.H  Fuse, PCB Leaded, 2 A, 125 VAC, MICRO Series, 125 VDC, Very Fast Acting, Radial Leaded

Win Source:
FUSE BOARD MNT 2A 125VAC/VDC RAD / 2 A 125 V AC 125 V DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
