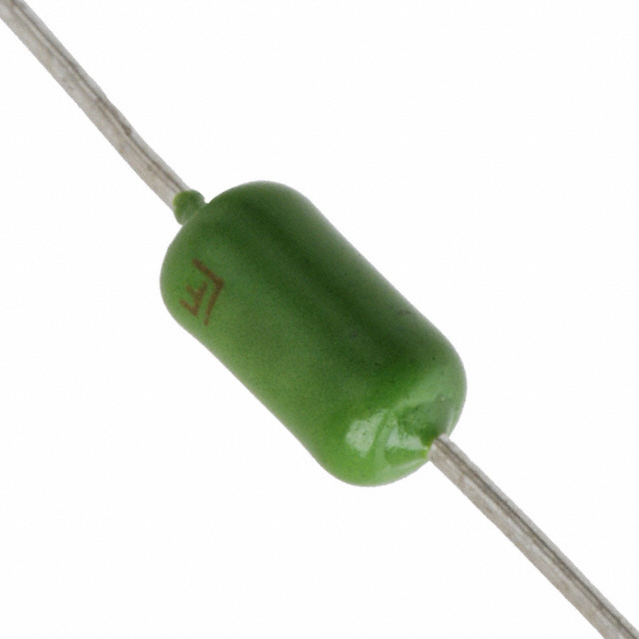

263系列， PICO® II 250伏，速度非常快熔保险丝 263 Series, PICO® II 250 Volt, Very Fast-Acting Fuse
** 263 Series Fuses**
Littelfuse PICO 263 series very fast-acting fuses are designed to meet an extensive array of performance characteristics in a space-saving subminiature package. Suitable for applications such as LCD monitors, audio/video systems, lighting systems and medical equipment.
艾睿:
Fuse Subminiature Very Fast Acting 3A 250V Axial 3.68 X 7.62mm Solder Bulk CSA/PSE/UL
Allied Electronics:
3A Axial FF Non-Resettable Wire Ended Fuse, 250 V ac
Chip1Stop:
Fuse Subminiature Very Fast Acting 3A 250V Axial 3.68 X 7.62mm Solder Bulk
Verical:
Fuse Subminiature Very Fast Acting 3A 250V Axial 3.68 X 7.62mm Solder Bulk CSA/PSE/UL
Newark:
# LITTELFUSE 0263003.MXL Fuse, PCB Leaded, 3 A, 250 VAC, PICO II Series, Very Fast Acting, Axial Leaded
额定电压DC 250 V
额定电压AC 250 V
额定电流 3 A
电阻 0.0274 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 7.62 mm
直径 3.68 mm
封装 Axial
颜色 Green
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
