324分之314系列无铅3AB ，快熔保险丝 314/324 Series Lead-free 3AB, Fast-acting Fuse

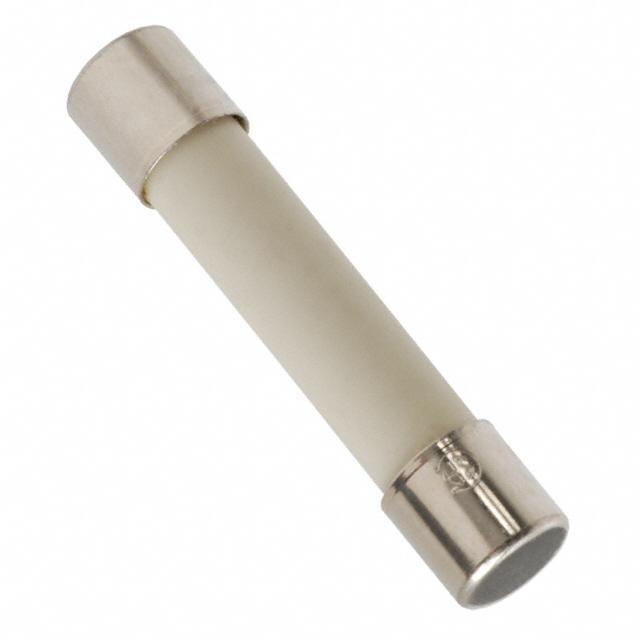

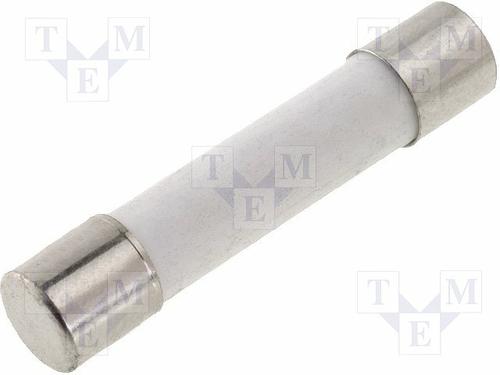

The is a 30A/250VAC fast acting Cartridge Fuse with ceramic body, tin-plated copper leads and nickel-plated brass cap. Used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits. The 3AB fast acting fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
- .
- 0.00182R Nominal cold resistance
- .
- -55 to 125°C Operating temperature range
触点电镀 Nickel
额定电压DC 125 V
额定电压AC 250 V
额定电流 30 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
制造应用 Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0314030.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0314030.HXP 力特 | 完全替代 | 0314030.MXP和0314030.HXP的区别 |
0324030.HXP 力特 | 完全替代 | 0314030.MXP和0324030.HXP的区别 |
0324030.VXP 力特 | 完全替代 | 0314030.MXP和0324030.VXP的区别 |
