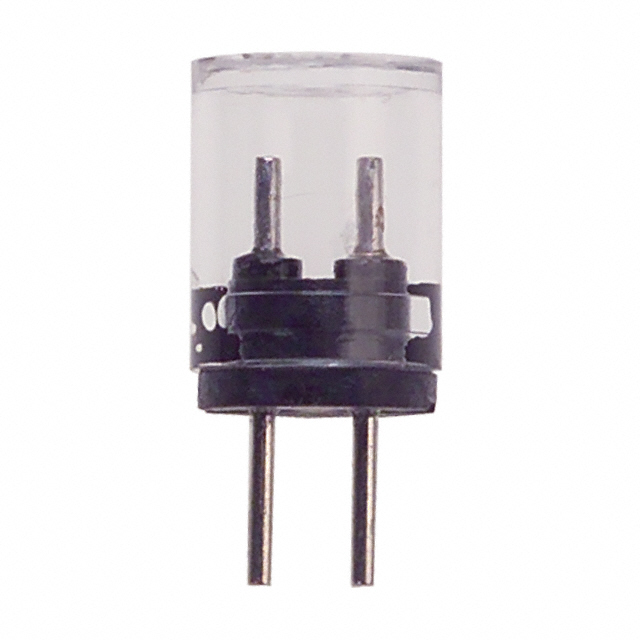

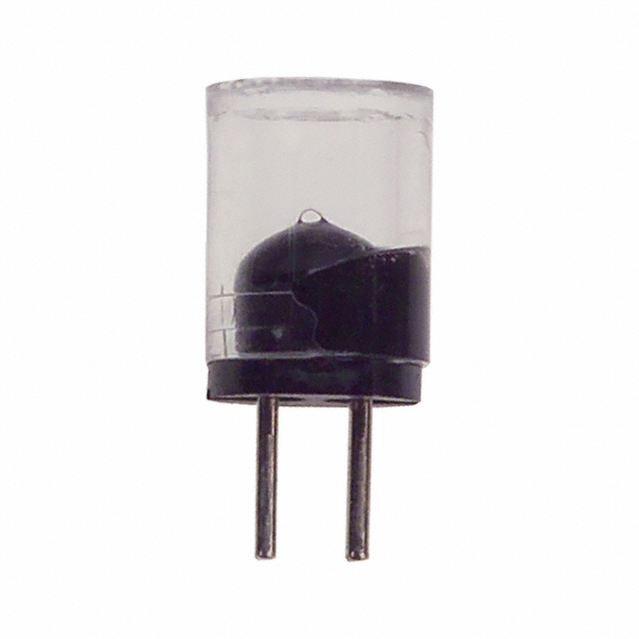

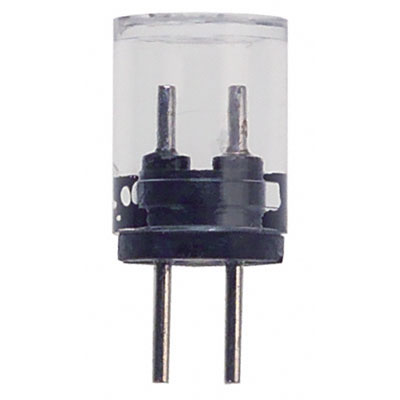

0273.750H

272/273/274/278/279系列，微安?? ¢非常快熔保险丝 272/273/274/278/279 Series, MICRO™ Very Fast-Acting Fuse

Very fast-acting. Ideal for printed circuits. Features low resistance and high reliability in ultrafast blowing characteristics. Series 279000 has 1" leads for wiring into circuit. Short circuit interrupting capacity 125 volts, 10,000 amps AC. Series 273000 has 0.170 leads for plugging into subminiature fuse holder.

.

*Blowing Specifications:** 100% — 4 hours minimum; 200% — 5 second maximum; transparent plastic cap. 125 V rating. UL Recognized. CSA Certified.

贸泽:
Fuses with Leads Through Hole 125V .75A MICRO Very Fast Acting

艾睿:
A great alternative to a circuit breaker, this a subminiature 0273.750H fuse from Littelfuse will protect your electronics. This device has a current rating of 0.75. This fuse has a minimum operating temperature of -55 °C and a maximum of 85 °C. It has 2 terminals. The 0273.750H fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 8.89 mm tall with a diameter of 6.35 mm.

Allied Electronics:
Fuse; Submin; Very Fast Acting; 0.75A; Supplemental; Dims 0.25x0.35"; Plug-In; PCB

Jameco:
Fuse 0.75A 125 Volt Very Fast Acting 2-Pin Bulk

Chip1Stop:
Fuse Subminiature Very Fast Acting 0.75A 125V Radial 6 X 8mm Bulk

Verical:
Fuse Subminiature Very Fast Acting 0.75A 125V Radial 6 X 8mm Bulk CSA

Newark:
# LITTELFUSE  0273.750H  Fuse, PCB Leaded, 750 mA, 125 VAC, MICRO Series, 125 VDC, Very Fast Acting, Radial Leaded
