_超微型熔丝架### 表面安装技术表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等

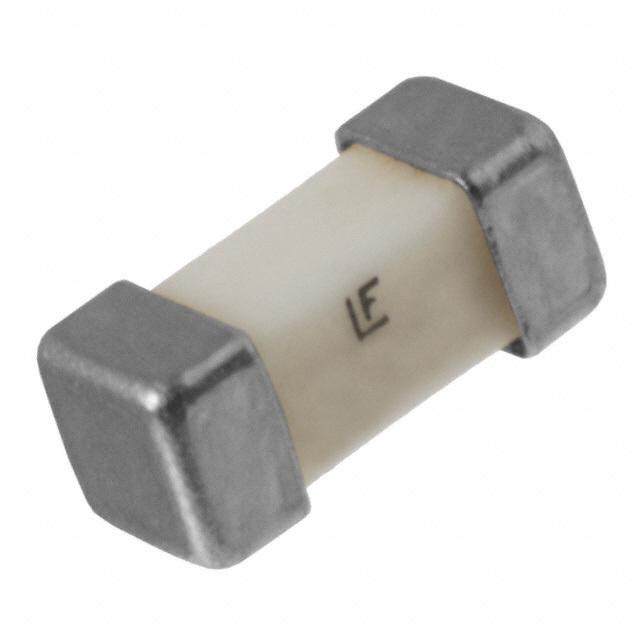

451 系列 NANO2 表面安装熔丝
Littelfuse 451 系列 NANO2 表面安装熔丝是非常小的架空导线 WIA 方形表面安装器件,特别适用于次级侧电路过电流保护应用。
超快反应
小尺寸
低温降额
### 认可
CSA, UL
### 认可
UL; CSA
### 表面安装技术
表面安装熔丝适用于低电压应用,可大大节省空间(和时间)。 FF 类型最适用于保护高值硅 IC,例如,报警系统、音频/视频设备、计算机板、便携式电话、电源和医疗仪器等等
欧时:

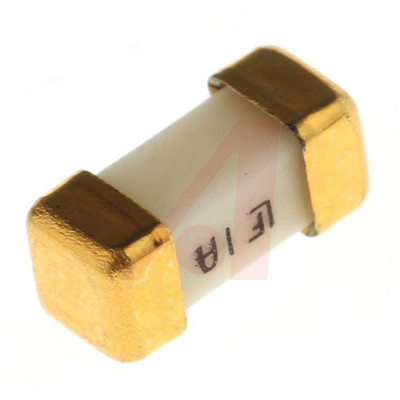

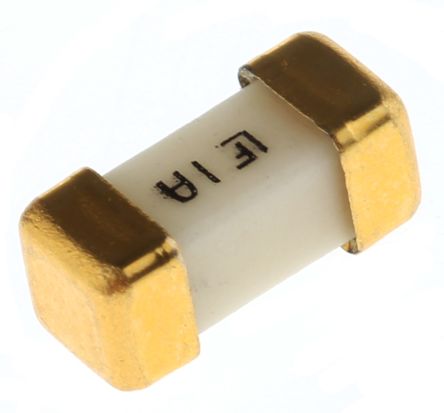

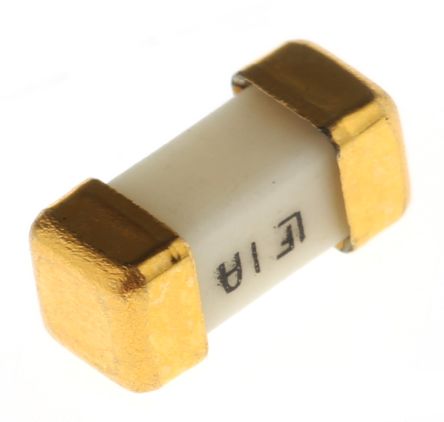

Littelfuse 1A电流 FF熔度 不可复位表面固定熔断器 0451001.NRL, 6.1 x 2.69 x 2.69mm, 125V ac
贸泽:
表面贴装式保险丝 125VAC 1A .078ohms 451 NANO2
e络盟:
表面安装保险丝, 1 A, NANO2系列, 125 VAC, 32 VDC, 非常快速反应, SMD
艾睿:
A great alternative to a circuit breaker, this a chip 0451001.NRL fuse from Littelfuse will protect your electronics. This device has a current rating of 1. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0451001.NRL fuse has a solder pad termination style. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Mount your fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 6.1 mm long, 2.69 mm tall and 2.69 mm deep. Its fuse is made from ceramic. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.
Allied Electronics:
1A FF Non-Resettable Surface Mount Fuse, 125 V ac
Verical:
Fuse Chip Very Fast Acting 1A 125V SMD Solder Pad 2410 Ceramic T/R CE/CSA/PSE/UL
Newark:
# LITTELFUSE 0451001.NRL FUSE, QUICK BLOW, SMD, 1A
额定电压DC 32 V
额定电压AC 125 V
额定电流 1 A
电阻 78 mΩ
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 125 VAC
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 6.1 mm
宽度 2.69 mm
高度 2.69 mm
封装 SMD-2
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Communications & Networking, Wireless, Industrial, 通信与网络, 自动化与过程控制, Safety, Portable Devices, Computers & Computer Peripherals, 电源管理, 安全, 工业, Automation & Process Control, 便携式器材, HVAC, Consumer Electronics, 计算机和计算机周边, 无线, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0451001.NRL Littelfuse 力特 | 当前型号 | 当前型号 |
0451001.MRSN 力特 | 完全替代 | 0451001.NRL和0451001.MRSN的区别 |
0451001.MRL 力特 | 类似代替 | 0451001.NRL和0451001.MRL的区别 |
0453001.MR 力特 | 类似代替 | 0451001.NRL和0453001.MR的区别 |
