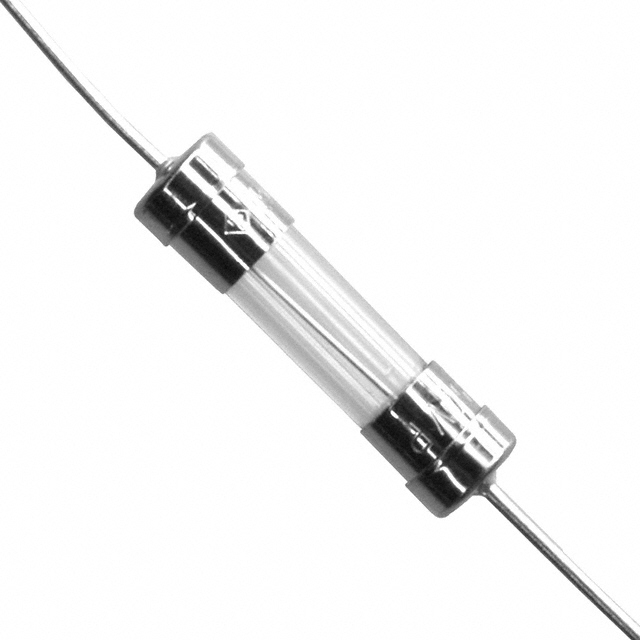

217系列, 5 ×20毫米,快熔保险丝 217 Series, 5 x 20 mm, Fast-acting Fuse
A great alternative to a circuit breaker, this a miniature fuse from will protect your electronics. This device has a current rating of 3.15. This device has a maximum power dissipation of 2.5Typ W. Its maximum power dissipation is 2.5Typ W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 02173.15MXEP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. Its fuse is made from glass. This product is 22.5Max mm long with a diameter of 5.8Max mm. The maximum AC voltage rating is 250 VAC.
额定电压DC 250 V
额定电压AC 250 V
额定电流 3.15 A
耗散功率 2.5 W
电阻 0.022 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 2.5 W
额定电压 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 5mm x 20mm Axial
长度 22.5 mm
直径 5.00 mm
封装 5mm x 20mm Axial
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
02173.15MXEP Littelfuse 力特 | 当前型号 | 当前型号 |
0217001.MXEP 力特 | 类似代替 | 02173.15MXEP和0217001.MXEP的区别 |
0217005.MXEP 力特 | 类似代替 | 02173.15MXEP和0217005.MXEP的区别 |
0217015.MXEP 力特 | 类似代替 | 02173.15MXEP和0217015.MXEP的区别 |
